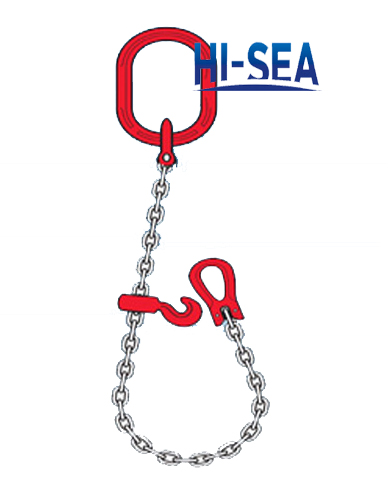

Adjustable Chain Binding Sling

Adjustable Chain Binding Sling

Adjustable chain binding sling is an necessary part of crane, and an improtant fetch device. It plays an important role in expanding the working scope of crane and improve the working efficiency of crane. According to the difference of hoisting height, it can adjust the length of the chain.

Product Details:

1. Item: Adjustable chain binding sling

2. Grade: G80

3. Structure: Combined chain

4. Material: Alloy steel

5. Technology: Drop forged

6. Surface: Hot dip galvanized, polished, color painted

7. Function: Drag chain

8. Size: 6mm-34mm

9. Must be used in the range of its rated load.

10. Special specifications and marks can be made according to customers requirement

Specification:

Dia.of chain	WLL	Master link	Chain weight
mm	T	mm	kg
6	0.8	6513012	0.79
8	1.2	6513016	1.38
10	2	6513016	2.2
12	2.8	8015020	3.1
14	4	9016024	4.13
16	4.8	9016024	5.63
18	6.4	10019028	6.85
20	8	10019028	8.6
22	9.6	11020032	10.2
24	11.2	12023034	12.78
26	13.6	13525038	14.87
30	17.6	14027042	19.6
34	28.8	18033052	22.7

Adjustable Chain Binding Sling

Adjustable Chain Binding Sling

Binding Sling with Double Limbs
