Aluminum Watertight Hatch Cover is a sort of watertight hatch cover which is made of aluminum. This product meets the standard of CB732-68. It is a small size hatch cover. It should be installed above the deck. Compared with steel watertight hatch cover, it is lighter. There are four types of the aluminum watertight hatch cover: type A, type B, type C, type D. There are four shapes of the hatch cover: square, rectangle, long circle and round. The cover specification can be customized.

Features

▪ In line with the standard of CB732-68

▪ To be watertight

▪ Made of aluminum

▪ Four shapes: square, rectangle, long circle and round

▪ Customization

▪ Light in weight

Aluminium Watertight Hatch Cover

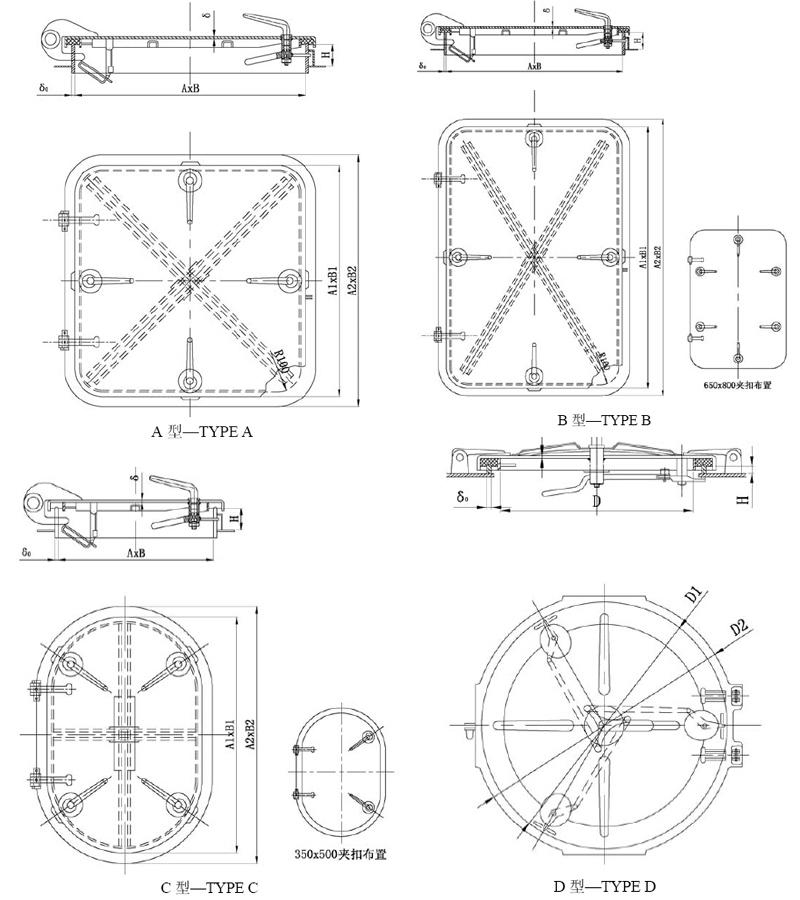

Drawing of Aluminum Watertight Hatch Cover

Type	clear size	A1xB1	A2xB2	δ	δ0	H
Type	AxB(mm)	(mm)	(mm)	δ	δ0	(mm)
A	500x500	532x532	588x588	3	4	50
A	600x600	632x632	688x688	3	4
B	450x600	482x632	538x688	3	4	50
B	650x800	686x836	738x888	4	4	50
C	350x500	382x532	438x588	3	4	50
C	450x600	482x632	538x688	3	4	50
D	600	636	640	3	2.5	27

Specifications of Aluminum Watertight Hatch Cover
