Ballast Water Treatment System Plant
Treatment Technology
The BWMS features two-stage process, applying efficient automatic filtration to remove larger organisms and sediments followed by powerful medium pressure UV unit to disinfect and inactivate smaller plankton, bacteria and pathogens.
Adopting totally chemical-free process, the BWMS best suits the demand of ship by effectively avoiding the uptake or discharge of harmful organisms but generating no toxic substance to environment and human health or corrosion contribution to ballast system.

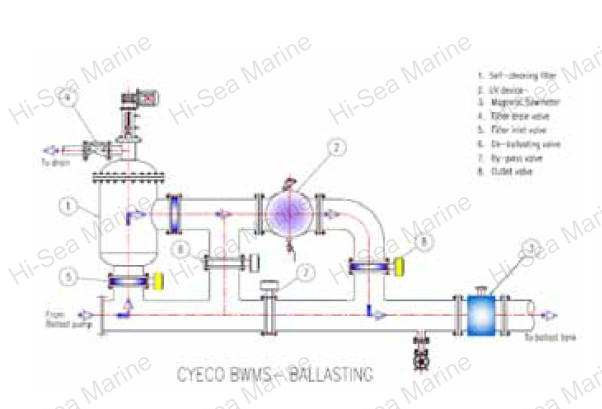

Ballast water is treated going through the complete process (filter followed by UV reactor) at ballast water intake and re-treated at discharge through the UV reactor only (filter bypassed). The UV irradiation of ballast water again during de-ballasting ensures that any bacterial regrowth that may have occurred in the ballast tanks is fully disinfected before discharge.
Different Models:
Specification of the BWMS System
|
Model |
Capacity (m3/hr) |
Dimension (mm,LกมWกมH) |
Weight (kg) |
|
B150 |
150 |
2410กม1265กม1955 |
550 |
|
B250 |
250 |
3010กม1265กม2115 |
750 |
|
B300 |
300 |
3010กม1265กม2115 |
750 |
|
B500 |
500 |
3600กม2015กม3250 |
1250 |
|
B600 |
600 |
3650กม2250กม3250 |
1280 |
|
B750 |
750 |
3740กม2280กม3810 |
2850 |
|
B1000 |
1000 |
4165กม2415กม3845 |
3250 |
|
B1200 |
1200 |
3650กม4500กม3250 |
3560 |
|
B1500 |
1500 |
3740กม4560กม3810 |
5700 |
|
B2000 |
2000 |
4165กม4830กม3845 |
6500 |
|
B3000 |
3000 |
4165กม7245กม3845 |
9750 |
|
B4000 |
4000 |
4165กม9660กม3845 |
13000 |
|
B5000 |
5000 |
4165กม12075กม3845 |
16250 |
|
B6000 |
6000 |
4165กม14490กม3845 |
19500 |
