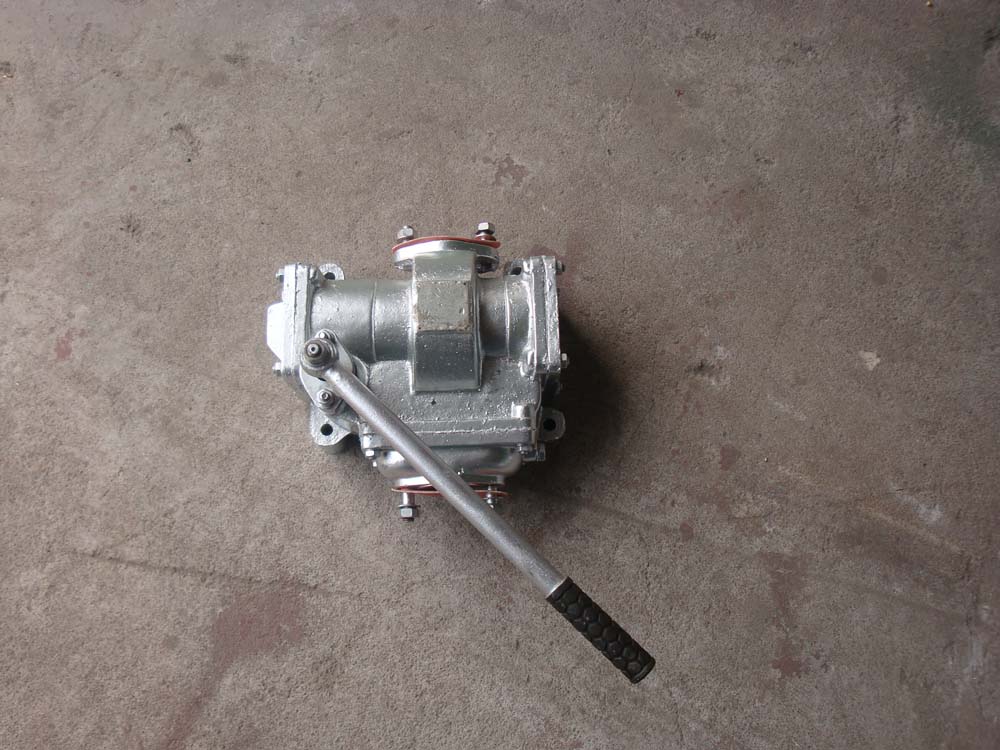

CS Marine Hand Pump


Applications:


CS Series hand piston pump is suitable for various ships pumping not containing hard particles or fibers of the lubricating oil, fuel oil, lubricating oil, other freshwater and seawater, and can be used in civil engineering, fire, water, drainage, oil and water wells kitchen vehicle transport sector and other different places. Transmission medium temperature not exceeding 60≧.



Model Explanation



for example CS-20Y/H

C ! Marine

S ! Hand pump

20 ! Inlet and outlet diameter 20mm

Y/H Iron cylinder or copper alloyCS-20Y(S-20) ! Applicable to pumping oil or water

CS-20H(SH-20)!Applicable to fresh water and sea water



Main Technical Parameter



Series Name CS
Product Name Marine Handing Pump
Model

Capacity
(m3/h)

Pressure head (m)

Time (onece/min)

Suction head (m)

Piston stroke (kw)

Weight (kg)

CS-20 20 20-25 50 5 68 1.45
CS-20Y/H 20 25 50 6 68 0.33
CS-25Y/H 32 25 50 6 80 0.33
CS-32 40 20-25 50 5 90 0.33
CS-32Y/H 48 25 50 6 90 0.33
CS-40Y/H 65 25 50 6 90 0.36
Application

applicable for marine to transport freshwater, fuel sewage and water of no corrosivity, not suitable for transport liquid that contain any fiber and solid granules

Medium tempreture Max.60≧

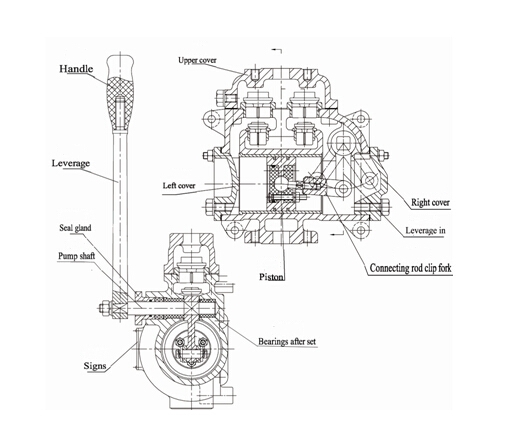

Structure


CS Marine Hand Pump





CS Marine Hand Pump
