CYW Marine Submerged Sewage Pump
[Search Related Products]
Application:
These series pump are used for plants, residential sewage disposal, urban sewage treatment
plant drainage systems, water plants, hospitals, hotels, municipal engineering, construction sites,
exploration, mining, agricultural irrigation and other industries. Suitable for conveying the sewage
containing solid particles, dirt, and can be used to clean water and corrosive media.
Main Technical Parameter
| Series Name | CYW |
| Product Name | Marin Submerged Sewage pump |
| Feature | motor-driven uprightness meatussingle-channel impeller centrifugal drainage pump |
| Model | HS-CYW01 |
| Capacity (m3/h) | 8-37 |
| Head (m) | 7-40 |
| Speed (r/min) | 1390/2825/3450 |
| Power (kw) | 0.75-7.5 |
| Efficiency (¦Ç%) | 38.1-58 |
| Application | Suitable for transferring sewage, industrial waste water, oily water, fresh water and sea water |
| Medium tempreture | Max.60¡æ |
| Certification | CCS, BV etc. |

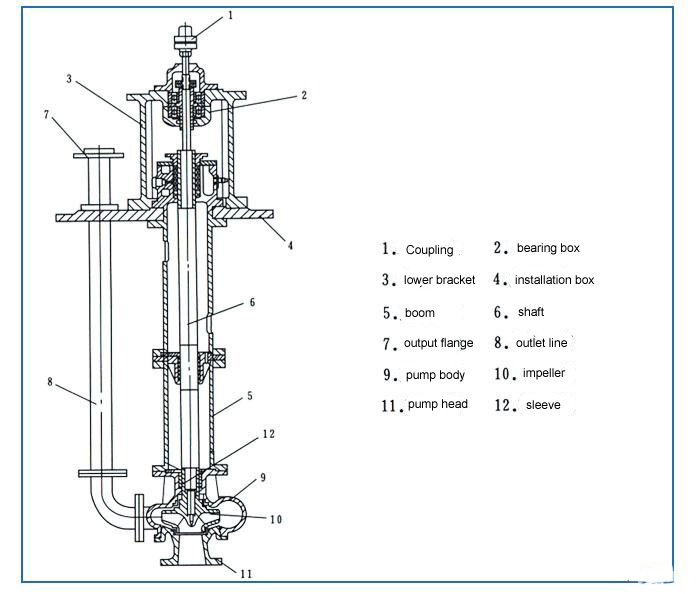

Structure
Our Certification:
