Double-Column and Double-Cylinder Horizontal Band Sawing Machine

[Search Related Products]

Double-Column and Double-Cylinder Horizontal Band Sawing Machine




Double-Column and Double-Cylinder Horizontal Band Sawing Machine

Main features:

1. High stability, narrow kerfs and material-saving.

2. Automatic stopping regulation after completing cutting. Saw frame moves up.

3. The machine is able to adjust the cutting speed according to the material, which extends service life of the saw blade.

4. Saw blade uses adjustable load to make sure the machine works without fatigue.

Stepless speed can adjust to a best cutting effect.

5. It adopts cursor to fix position, in order to set cutting size.

6. Machine stops automatically when saw blade breaks (to ensure safety).

7. Hydraulic control of blade tension (easy to operate and improve efficiency).


Technical Parameters

Max. cutting range (mm)

Round materialก้500

Sheet 500กม700 (H*W)

Cutting speed(m/min)

Stepless adjustment

Saw blade speed

Stepless adjustment

Blade dimension(mm)

6470กม41กม1.3(L*W*T)

Motor (KW)

Main motor

5.5

Oil pump motor

1.5

Water pump motor

0.12

Oil tank capacity (L)

Hydraulic compound

100

Cutting compound

60

Machine size (mm)

3550กม1750กม1900

Machine weight (kg)

4200


Spare Parts

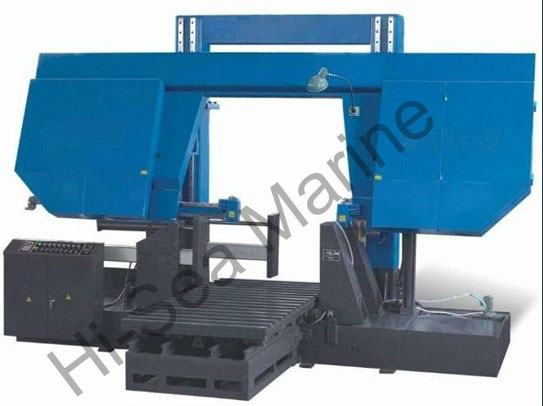

Sawer

Double-Column and Double-Cylinder Horizontal Band Sawing Machine

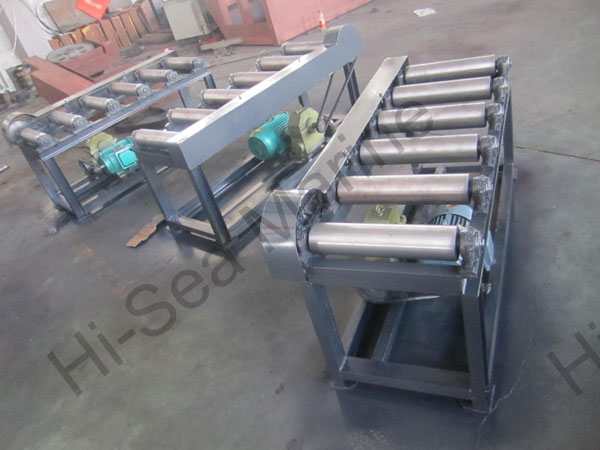

Feeding Table

Double-Column and Double-Cylinder Horizontal Band Sawing MachineDouble-Column and Double-Cylinder Horizontal Band Sawing Machine
