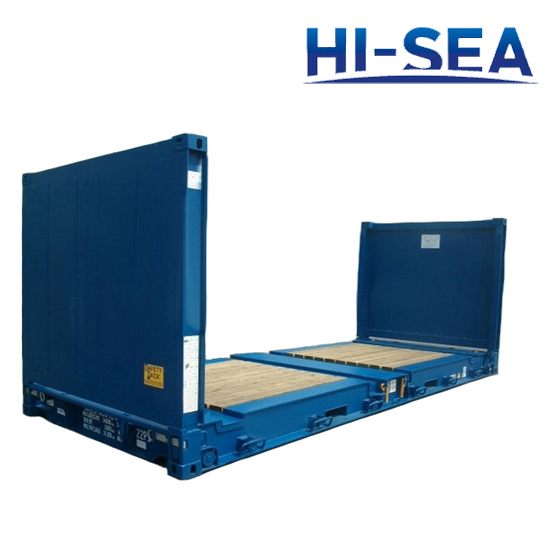

Flat Rack Container

Flat Rack Container

Flat rack container has no roof and two sides. It has only two side walls that can be fixed or folded. The loading and unloading operation is from the side of container. In order to ensure the safety of goods, there are a lot of container lashing ring installed in the detachable framework longeron, corner and floor. The high strengh steel make it can be used repeatedly.

Product Details:

1. Type: Flat Rack Container

2. Material: Carbon steel, plywood

3. External Dimension: 6058*2438*2591mm/ 12192*2438*2591mm

4. Internal Dimension: 5638*2194*2233mm/ 11752*2374*1959mm

5. Maximum gross weight: 30000KG/ 45000KG

6. Tare Weight: 2750KG/ 49000KG

7. Maximum payload: 20900KG/ 40100KG

8. Allowing Stacking Weight: 192000KG

9. Finish: Painted

10. Color: as your requirement

11. Certificate: CCS, BV, GL, ABS

Specification: HSFR

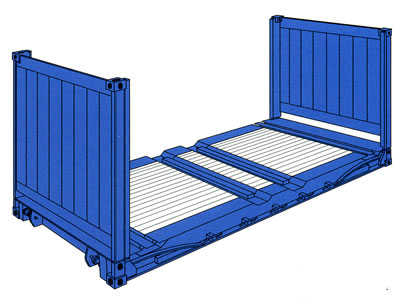

Sketch of flat rack container

Flat Rack Container
