Grade 8 Lifting Chain (EN 818-2)


Grade 8 Lifting Chain (EN 818-2 )

Grade 8 lifting chain is a sort of short link welded chain manufactured to meet the European standard EN 818-2. The grade 8 lifting chain is also called grade 80 lifting chain. It is of medium tolerance for use in chain slings and for general lifting purposes. The chain is heat treated and complying with the general conditions of acceptance. We offer the range of nominal sizes of chain is from 4 mm to 45 mm. In addition to standard specifications, non-standard specifications also are available. The chain provided are produced by Chinese top factories, quality-guaranteed.

Excepting for the grade 8 lifting chain complying with EN 818-2, ASTM grade 80 chain, 100 chain available, too. Please contact us for more information about lifting chains.

Features of Grade 8 Lifting Chain (EN 818-2)

• Four times safety coefficient

• Four times test load

• Finishes: hot galvanized, paint, powder coating or as per customer¡¯s request

• To meet the specifications of EN 818-2

• Available in gunny bag, drums, pails

• Application: for use in chain slings and for general lifting purposes

Grade 8 Lifting Chain (EN 818-2)

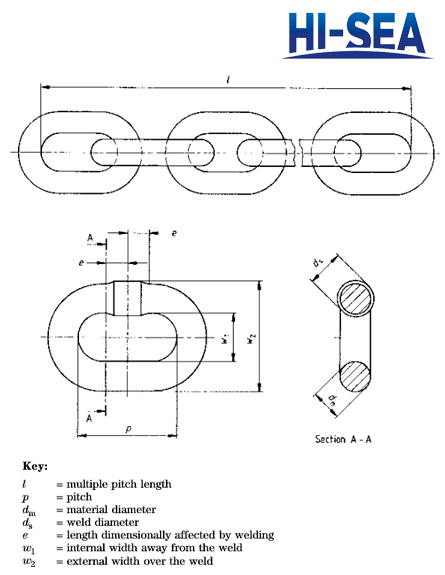

Drawing of Grade 8 Lifting Chain (EN 818-2)



Specifications of Grade 8 Lifting Chain (EN 818-2)

Dimensions in Millimeters

Nominal Size

dn

Weld Diameter

ds

max

Pitch

Internal Width away from Weld

w1

min

External Width over the Weld

w2

max

Pn

P

max

P

min

4

4.4

12

12.4

11.6

5.2

14.8

5

5.5

15

15.5

14.6

6.5

18.5

6

6.6

18

18.5

17.5

7.8

22.2

7

7.7

21

21.6

20.4

9.1

25.9

8

8.8

24

24.7

23.3

10.4

29.6

10

11

30

30.9

29.1

13

37

13

14.3

39

40.2

37.8

16.9

48.1

16

17.6

48

49.4

46.6

20.8

59.2

18

19.8

54

55.6

52.4

23.4

66.6

19

20.9

57

58.7

55.3

24.7

70.3

20

22

60

61.8

58.2

26

74

22

24.2

66

68

64

28.6

81.4

23

25.3

69

71.1

66.9

29.9

85.1

25

27.5

75

77.3

72.8

32.5

92.5

26

28.6

78

80.3

75.7

33.8

96.2

28

30.8

84

86.5

81.5

36.4

104

32

35.2

96

98.9

93.1

41.6

118

36

39.6

108

111

105

46.8

133

40

44

120

124

116

52

148

45

49.5

135

139

131

58.5

167

Note

Pn -- nominal pitch

Pmax -- maximum pitch of chain

Pmin -- minimum pitch of chain

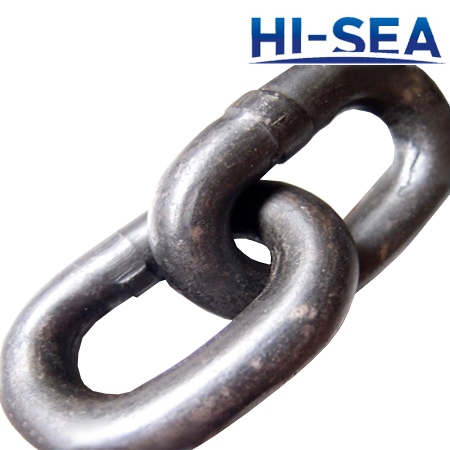

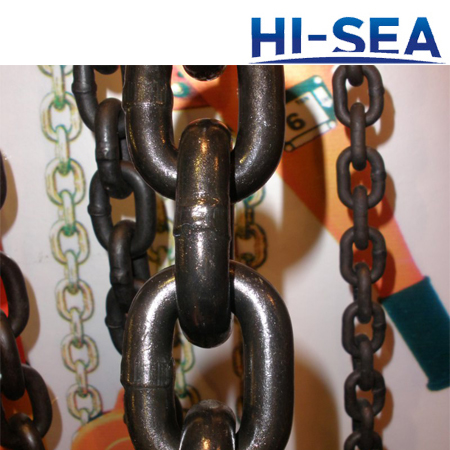

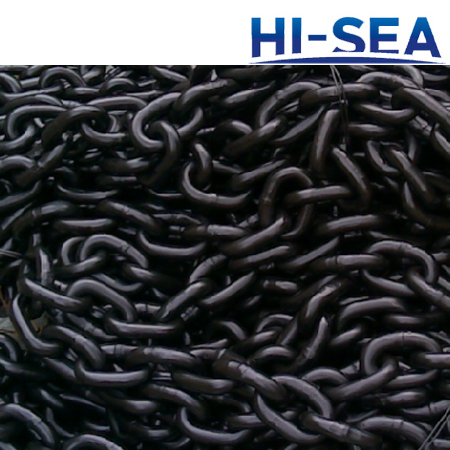

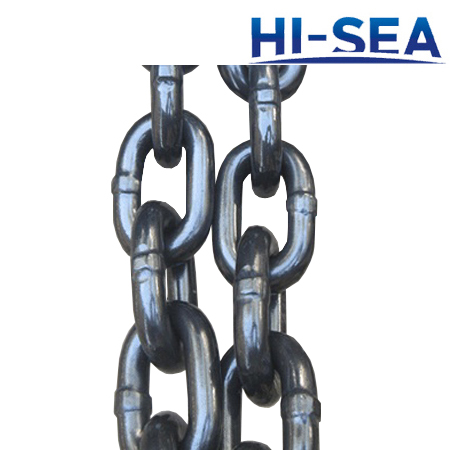

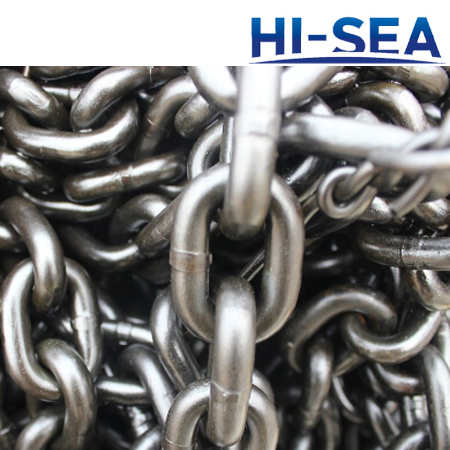

Pictures of Grade 8 Lifting Chain (EN 818-2 )

Grade 8 Lifting Chain (EN 818-2)

Grade 8 Lifting Chain (EN 818-2)

Grade 8 Lifting Chain (EN 818-2)

Grade 8 Lifting Chain (EN 818-2)

Grade 8 Lifting Chain (EN 818-2)

Grade 8 Lifting Chain (EN 818-2)
