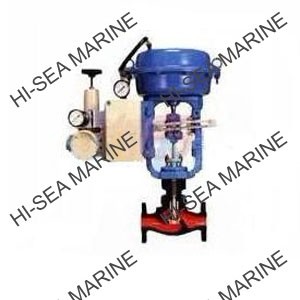

HTS - Pneumatic single seat control valve
Material:
Valve body: ZG230-450, ZG1Cr18Ni9Ti, 316, 316L, anti-corrosion alloy
Valve seat: 1Cr18Ni9Ti, 316, 316L, anti-corrosion alloy, F4
Packing material: PTFE, flexible graphite
Diaphragm material: NBR
Nominal dimension (mm) | 40 | 50 | 65 | 80 | 100 | 150 | 200 | |||||||||||||||
Seat diameter (mm) | 25 | 32 | 40 | 32 | 40 | 50 | 40 | 50 | 65 | 50 | 65 | 80 | 65 | 80 | 100 | 100 | 125 | 150 | 125 | 150 | 200 | |
Rated flow (Cv) | high precision | 10 | 17 | 24 | 17 | 24 | 44 | 24 | 44 | 68 | 44 | 68 | 99 | 68 | 99 | 175 | 175 | 275 | 360 | 275 | 360 | 640 |
high capacity | ¡¡ | ¡¡ | 30 | ¡¡ | ¡¡ | 50 | ¡¡ | ¡¡ | 85 | ¡¡ | ¡¡ | 125 | ¡¡ | ¡¡ | 200 | ¡¡ | ¡¡ | 420 | ¡¡ | ¡¡ | 700 | |
quick opening | ¡¡ | ¡¡ | 35 | ¡¡ | ¡¡ | 55 | ¡¡ | ¡¡ | 95 | ¡¡ | ¡¡ | 135 | ¡¡ | ¡¡ | 220 | ¡¡ | ¡¡ | 460 | ¡¡ | ¡¡ | 720 | |
Rated travel | quick opening valve core | 10 | 13 | 19 | 25 | 30 | 50 | |||||||||||||||
other valve core | 25 | 38 | 50 | 75 | ||||||||||||||||||
Rangeability | 50:1 | |||||||||||||||||||||
Nominal pressure | JIS 10, 16, 20, 30, 40K; ANSI 125, 150, 300, 600; JPI 125, 150, 300, 600; PN1.6, 4.0, 6.4MPa | |||||||||||||||||||||
Flow charcter | Equal percentage, linear, quick opening | |||||||||||||||||||||
Core type | Top guided single seat plunger | |||||||||||||||||||||
Flange standard | JB78-59, JB79-59,JB/T79.1-94, JB/T79.2-94, ANSI, JIS, DIN etc | |||||||||||||||||||||
Upper valve bonnet ¡¡ |
Normal temp type (*17~230oC); Extension ¢ñ(-45~-17oC, 230~566oC); Extension ¢ò(-100~-45oC); extension ¢ó(-196~-100oC) | |||||||||||||||||||||
Action type | Air to open; air to close | |||||||||||||||||||||
Actuator | ZHA/B multi spring pneumatic diaphragm actuator | |||||||||||||||||||||
Accessories | Positioner, solenoid valve; air filter pressure reducing valve, limit switch, valve position feedback device, emergency actuating device, handwheel etc |
