Hydraulic Safety Valve

Hydraulic safety valve:

1.Manufacturing standard:GB5908-86.

2.End type:Flange/Thread.

3.End standard:HG,GB,SH,HGJ,JB,ANSI,JIS.

4.Operating pressure:-30mmH2O～1500mmH2O.

5.Material of construction:

NO

1

2

3

4

5

Component

Body

Compart Canister

Valve Casing

Liquid Canister

Pipe Center

Material

Steel

Aluminums

Casting

304

316

316L

304

316

316L

304

316

316L

304

316

316L

6.Dimension table：

DN	32	50	80	100	150	200	250	300
L	200	200	220	500	650	900	1050	1250
H	380	380	424	605	705	755	885	1000

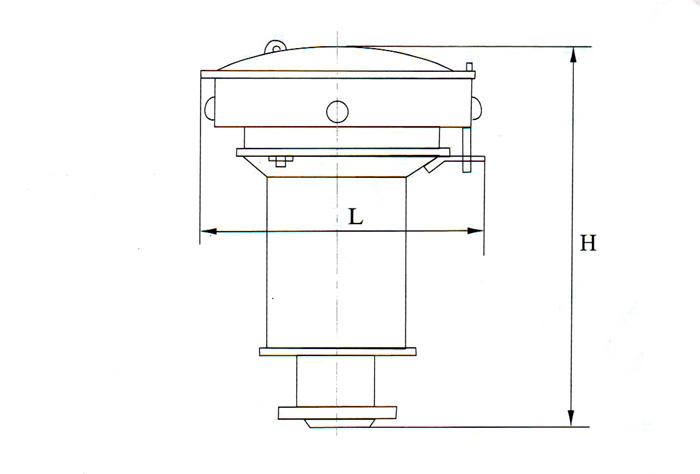

7.Drawing of hydraulic safety valve:

OrderConstruction：

Please give clear indication of Dimension operating pressure and material.

Please give clear indication of flange, material and operating pressure if you need other standard.
