Hydro Power Kaplan Turbine

Kaplan turbine (also called axial flow hydroturbine) is suitable for developing medium and low water head power resources. Kaplan turbine with both fixed blade and rotating blade can be provided. The turbine with fixed blade is mainly used for small hydropower station with medium and small capacity and small variation in load, while turbine with rotating blade is used for hydropower station with medium and big capacity and big variation in load.

Our kaplan turbine units are suitable for 7-15m water head with runner diameter 0.8-1m and power 200-500KW.

This is technical parameters of typical 200KW kaplan turbine.

Hydraulic Turbine					Turbine Generator			Valve
Runner Diameter(m)	Design Head(m)	Design Flow(m3/s)	Output(KW)	Speed(r/min)	Power(KW)	Voltage(V)	Efficiency(%)	Model
1.0	7	3.60	220	333	200	400	90	Φ1500 Butterfly Valve
1.0	8	3.20	220	428	200	400	92	Φ1400 Butterfly Valve
0.8	9.5	2.65	220	500	200	400	90	Φ1200 Butterfly Valve
0.8	9.5	2.80	218	500	200	400	92	Φ1250 Butterfly Valve

Hydropower Equipment

Hydro Power Kaplan Turbine

Contact with us now

Hydropower Equipment

Hydro Power Kaplan Turbine

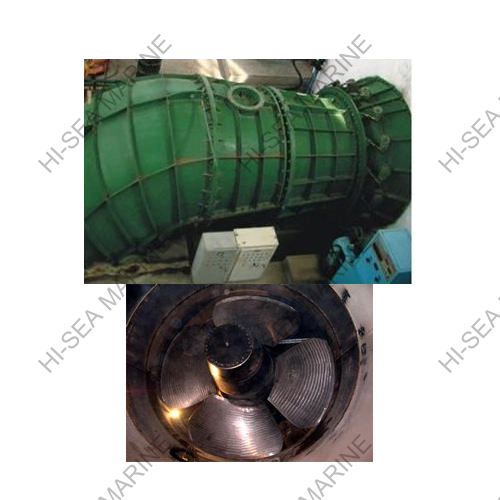

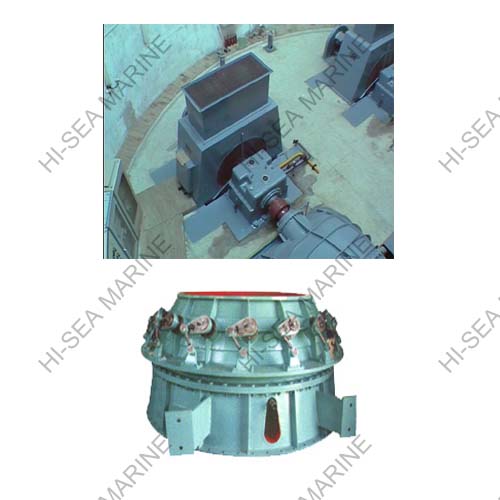

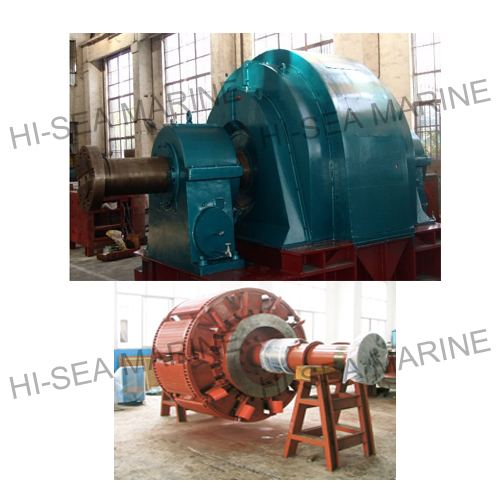

Related products for "Hydro Power Kaplan Turbine" 50 Products found
