Lashing Chain
Lashing chain, also known as binding chain, is vital component for the safe transport of goods whether this be by road, rail or sea. Lashing chain supplied by Hi-Sea Marine are of high quality and produced by Chinese top chain plants. The production equipment is imported from German WAFIOS. At Hi-Sea Marine we are able to offer lashing chains and components in various materials, such as low carbon steel, medium carbon steel, alloy... The most regular materials of the chain are Q235, 25MnV, 20MnV. The chains that you choose meet or exceed the international standards. Please contact us for the further details of chains, components and other ancillary equipment.
Partial Specifications of Lashing Chain
|
Chain Diameter mm |
Pitch mm |
Outside Width mm |
Test Load kn |
Breaking Load kn |
Nominal weight kg/m |
|
6 |
35 |
22 |
22 |
44 |
0.64 |
|
7 |
35 |
24 |
22 |
44 |
0.90 |
|
9 |
53 |
33 |
49 |
98 |
1.42 |
|
10(A) |
65 |
42 |
63 |
125 |
1.75 |
|
10(B) |
53 |
35 |
63 |
125 |
1.80 |
|
11 |
64 |
40 |
73.5 |
147 |
2.18 |
|
12 |
64 |
42 |
73.5 |
147 |
2.58 |
|
13(A) |
82 |
54.6 |
95 |
190 |
3.05 |
|
13(B) |
80 |
48 |
95 |
190 |
3.01 |
|
14 |
80 |
50 |
100 |
200 |
3.55 |
|
16 |
100 |
67.2 |
160 |
320 |
4.58 |
|
19 |
76 |
67 |
198.5 |
397 |
7.64 |
|
20 |
95.3 |
68.6 |
219.9 |
439.8 |
7.41 |
|
25 |
104.8 |
84.9 |
343.5 |
687 |
12.1 |
|
Partial Product Display |
|
|
|

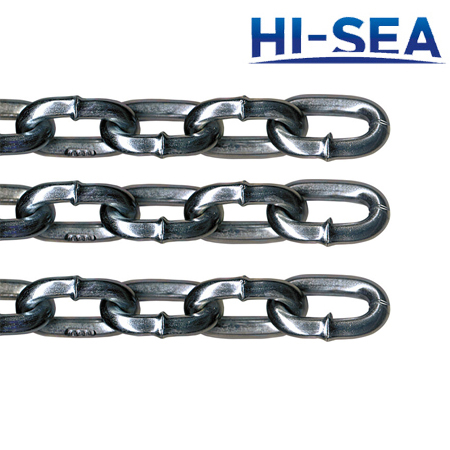

• Material: low-carbon steel • Standard: ASTM, NACM • Finish: self-colored, galvanized, burnished, powder coated, zinc plated • Application: guard rails, logging, load securement... • Available in customization • Not to be used for overhead lifting |
|
|

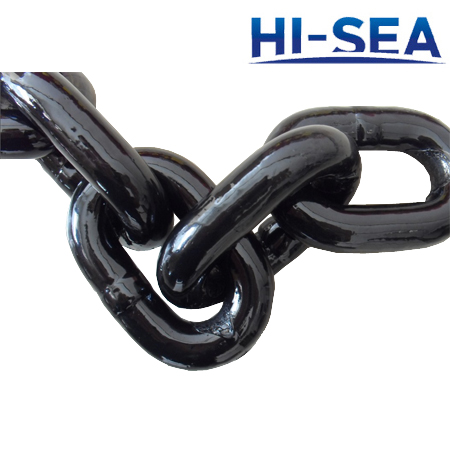

• Material: medium carbon steel • Standard: ASTM A413, NACM • Finish: self-colored, shot blast, electro-galvanized, powder coated, hot galvanized • Application: transport tie downs, marine industry... • Available for customization • Not to be used for overhead lifting |
|
|

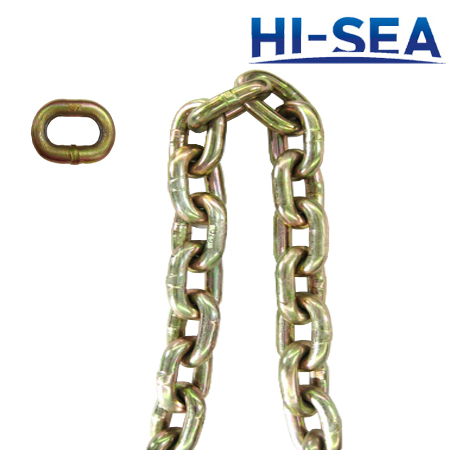

• Materials: carbon steel • Surface: chromate finish£¬black painted, galvanized • Standard: ASTM and NACM • Application: trailer tie downs, logging, safety, oil rigging... • Available for customization • Not to be used for overhead lifting |
|
|

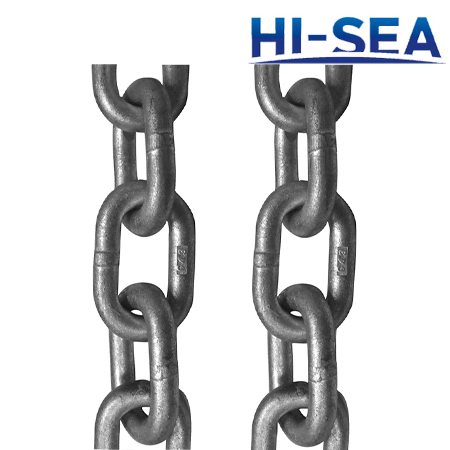

• Material: alloy • Standard: ASTM, NACM, OSHA • Optional clevis grab hooks on each end • Available to custom lengths and sizes • Not to be used for overhead lifting |
