Marine Bronze Flanged Gate Valve CBM1090-81

Marine Bronze Flanged Gate Valve CBM1090-81:

1.Design standard:CBM1090-81.

2.End standard:CBM1020.

3.End type:Flange.

4.PN:0.5Mpa.

5.DN:15mm-40mm.

6.Main material:

7.Application:Sea water,fresh water,oil and steam piping.

8.Function:Such valves are used for on-off duty.

9.Fundamental dimensions of Marine Bronze Flanged Gate Valve CBM1090-81:

DN	Flange connection dimension				Height	Structure length
mm	D	C	n	d	H	L
15	80	60	4	12	103	90
20	85	65	4	12	111	100
25	95	75	4	12	124	110
32	115	90	4	15	145	130
40	120	95	4	15	165	140

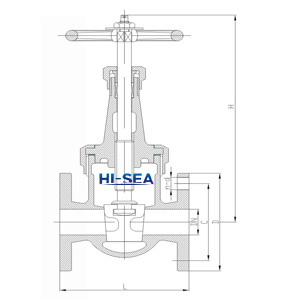

10.Drawing of Marine Bronze Flanged Gate Valve CBM1090-81:

Marine Bronze Flanged Gate Valve CBM1090-81

11.Certificate available:

CBM Marine Valve
