Marine Chart Light

Marine Chart Light:

Chart Light is used to light on the chart desk in steering room.The shell adopts good quality steel,wall-type mounting,the light can mobile upside down,left and right,fore and back,equipped with dimmer,can control steplessly.The chart light conform to GRADE ENTRY NORMS FOR STEEL SHIPS and approved by the CCS.

Specification:

1.Power:<100W

2.Voltage:220V

3.Lamp holder:E27

4.Illuminant:Incandescent lamp

5.Protection class:IP20

6.Weight:2.83kg

7.Certification:CCS

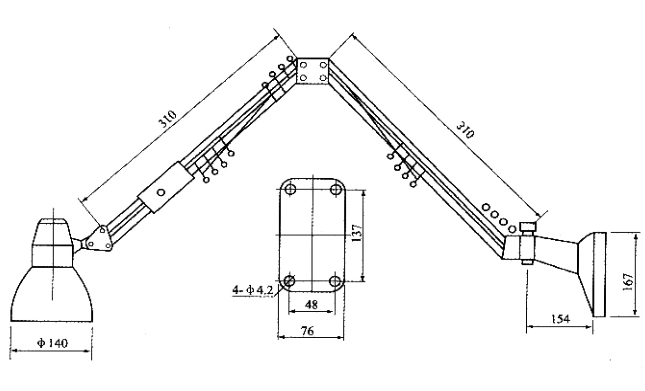

Chart Light Drawing
