Marine Pilot Seats

Marine Pilot Seats:

Marine Pilot Seats includes varieties of seats,such as Marine Light Anti-wave Pilot Seat,Marine Pilot Seat,Marine Helm Chair,Marine Helmsman Chair,Marine Fixed Pilot Seat and Marine Pilot Chair.

1.The material of the seat’s surface is made of black high quality PU imitation leather.The real leather or cloth art can be customized according to customers’ requirements.

2.The shape and color of the seat’s surface can be customized according to customers’ requirements.

3.The standard rail length of the seat is 1.2meters.If you wan to lengthen,the rail can be customized according to the requirements.

Function:

1.Ergonomic design;

2.Adjustable backrest and headrest;

3.Seat height may be angle adjusted;

4.Seats can be moved back and forth;

5.Folding / angle-adjustable comfortable seat armrest;

6.Seat can rotated 360 degrees, multi-point positioning;

7.Foot pedal height adjustable / folding;

8.Column can be vertically lifting;

Material：

1.lifting column with steel、stainless steel synthesis;

2.The seat lifting and tilting, move back and forth, back angle adjusting are used in steel structure;

3. The seat back and the seat cushion adopts the steel inner core and PU cold foam forming disposable sponge synthesis, outsourcing leather or cloth;

4. Pedal steel plate inner core and environmentally friendly rubber synthetic;

5. Pneumatic lifting core components pneumatic bar the use of German imports of Stabilus;

Function Data：

1.Upper part of the seat can be moved back and forth of 120mm,height adjustment 50mm, seat inclination angle range of ±12°;

2. Seat backrest with adjustable angle of 85°-150°, the headrest adjusted up and down 50mm, handrest multi-point positioning control;

3. The seat of pneumatic lifting regulating range 0-150mm；

4.The seat can rotate 360°and locked ,4-point positioning control;

5. Seat pedal can rotate 90° and regression, upper and lower position adjusting range of 0-50mm;

6.Seat can bear more than 150FT.LB torsion, reached AD grade standard;

Picture of Marine Pilot Seats

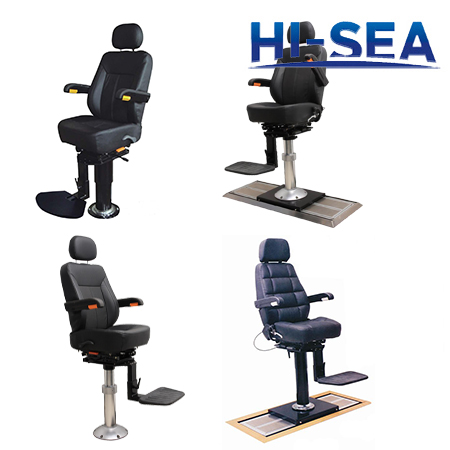

Photos of Marine Pilot Seats
