Marine Pressure Controller

Marine Pressure Controller

1. Usage: Taking two place to control the pressure of gas, steam or liquid.

2. Application: Used in ship.

3. Protection: IP44

4. Contact Capacity: AC 380V 3A DC 220V 2.5A

5. Model: YWK-50-C

Specification

Control Range	Switching Error Adjusting Limit		Enactment Error	Repeatability Error
Control Range	Min.	Max.	Enactment Error	Repeatability Error
-0.1~0	≤0.006	≥0.028	±0.004	±0.003
0~0.1	≤0.006	≥0.028	±0.004	±0.003
0~0.2	≤0.01	≥0.08	±0.008	±0.006
0~0.3	≤0.025	≥0.10	±0.012	±0.008
0~0.5	≤0.03	≥0.10	±0.02	±0.008
0~0.8	≤0.07	≥0.25	±0.032	±0.015
0~1.0	≤0.07	≥0.25	±0.04	±0.02
0~1.5	≤0.10	≥0.28	±0.06	±0.025
0~2.0	≤0.12	≥0.30	±0.08	±0.035
0~3.0	≤0.15	≥0.50	±0.12	±0.05
0~4.0	≤0.25	≥0.60	±0.16	±0.07

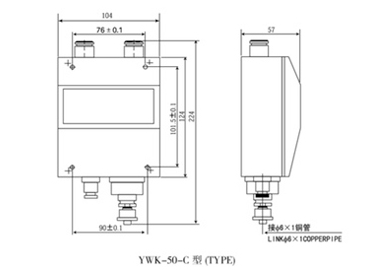

Outline Dimension of Marine Pressure Controller:

Marine Pressure Controller

Certificate Available:

Marine Pressure Controller
