Marine Quick Open and Close Weathertight Steel Door

Marine Quick Open and Close Weathertight Steel Door

Marine Quick Open and Close Weathertight Steel Door is installed on the upper structure above deck or deck house. This door is made of steel which is heatproof, solid, moistureproof, durable, crack-resistant and anti-aging. Besides, it has the feature that this door can be opened and closed quickly. This feature can isolate effectively external adverse conditions on the sea. There are two types marine quick open and close weathertight steel door, one is flush type, another is hand wheel type.

Features

▪ High quality steel

▪ To be opened and closed quickly

▪ Two types: flush type, hand wheel type

▪ Good weathertight performance

The Drawing of Marine Quick Open and Close Weathertight Steel Door (Flush Type)

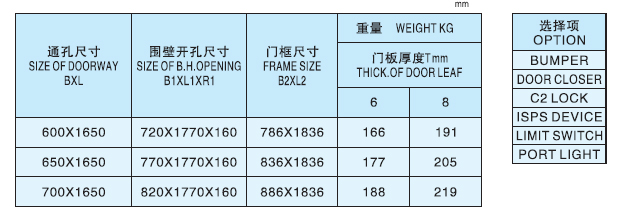

Basic Parameters of Marine Quick Open and Close Weathertight Steel Door (Flush Type)

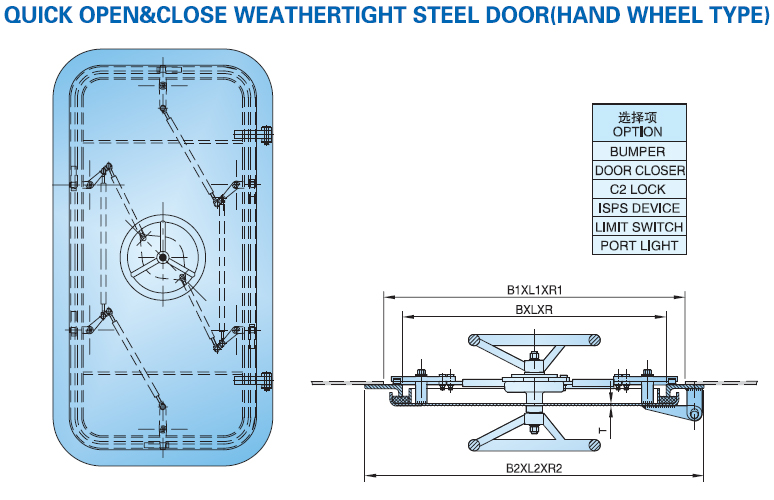

The Drawing of Marine Quick Open and Close Weathertight Steel Door (Hand Wheel Type)

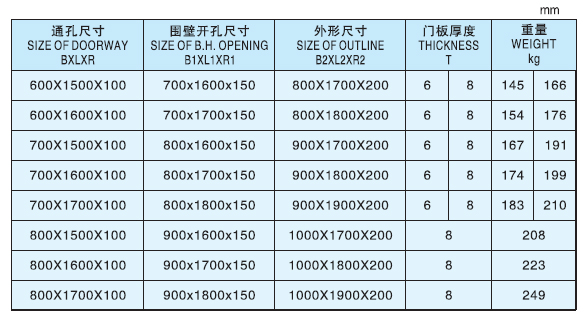

Basic Parameters of Marine Quick Open and Close Weathertight Steel Door (Hand Wheel Type)

Product Photo Show

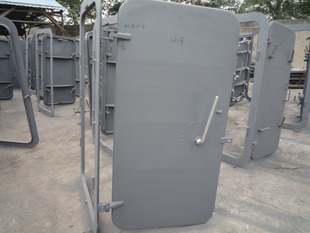

Marine Quick Open and Close Weathertight Steel Door (Flush Type)

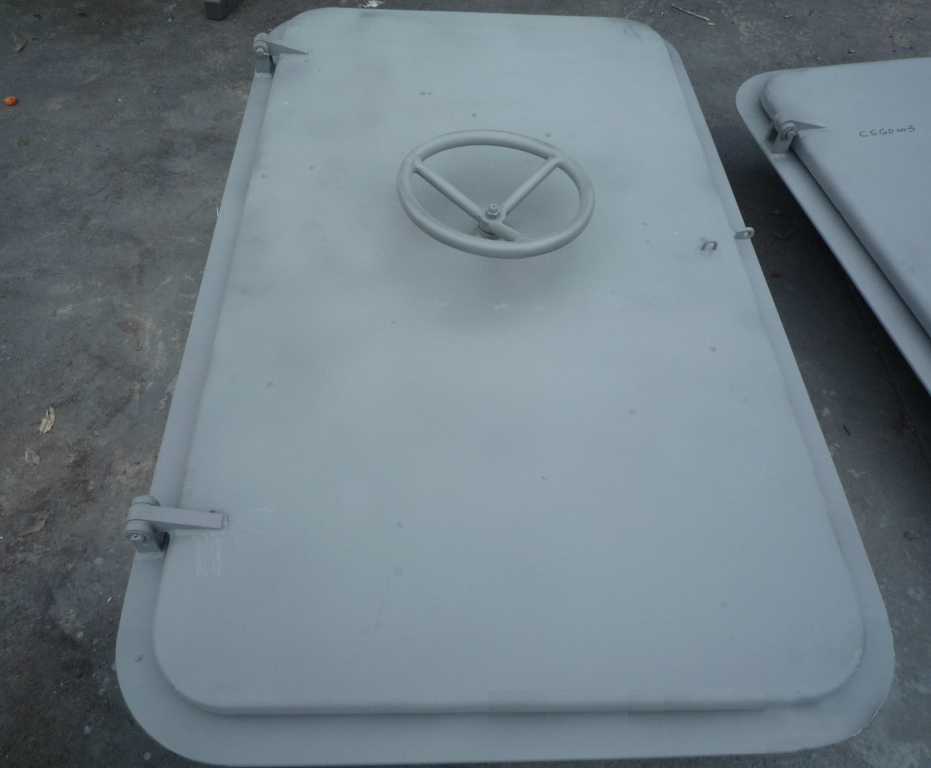

Marine Quick Open and Close Weathertight Steel Door (Hand Wheel Type)

Marine Quick Open and Close Weathertight Steel Door (Lever-Operated Type)
