Marine Steel Grating

Marine Steel Grating

Hi-sea marine steel grating has high quality.It is suitable for shipbuilding industry.Marine steel grating is widely used in machine furnace storehouse of ship,deck walkway,warehouse platform,etc.Our marine steel grating conforms to CB/T608-1998 standard.Marine steel grating complies with the regulations of the YB4001-91.Marine grating is also in accordance with these standards as follows:Chinese CCS standard, Germany GL standard, French BV standard, British LR standard, Norway DNV standard and so on.If you are interested in our products,welcome to contact us.

Base Materials of Marine Grating:

Q235A carbon steel, stainless steel (1cr18ni9ti stainless steel ordinary material) resin glass fiber reinforced plastic grille( FRP fiber reinforced composite plastics)

Surface Treatment of Marine Grating:

General hot dip galvanized process is for carbon steel

Acid picking and polishing processing are for stainless steel.

Specifications of Marine Steel Grating:(for reference)

Name

Outline dimension L*B(mm)

Application

Form code

Carbon steel marine steel grating

500*1000 600*1000
700*1000 800*1000

Machine furnace warehouse channel,deck walkway,platform

AG

Stainless steel marine steel grating

500*1000 600*1000
700*1000 800*1000

Machine furnace warehouse channel,deck walkway,platform

AB

I type marine steel grating

500*1000 600*1000
690*1000 780*1000

Machine furnace warehouse channel,deck walkway,platform

BG

Square FRP marine steel grating

500*1000 600*1000
700*1000 800*1000

Machine furnace warehouse channel,deck walkway,platform

BF

Note:Marine steel grating can be customized according to usersĄŻ special requirements.For any more information,please feel free to contact us directly.

Marine Steel Grating

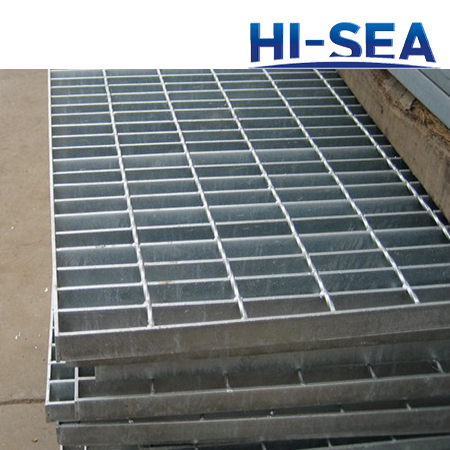

Picture of Marine Steel Grating

Marine Steel Grating

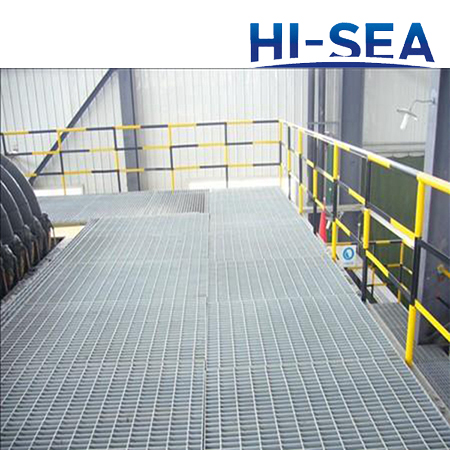

Photo of Marine Steel Grating

Certificates:CCS,GL,BV,LR,DNV,etc.
