Nickel Alloy Hemispherical Head

Nickel Alloy Hemispherical Head

Nickel Alloy Hemispherical Head:

Other names of hemispherical head: hemispherical end, hemispherical cap, dished hemispherical head, dished hemispherical end, etc.;

Feature: high strength, light weight, good anti-corrosiveness, etc.;

Application: pressure vessels, storage tanks, boilers, reactors, pipes, heat exchangers, condensers, absorbers, etc.;

Surface treatment: sand blasting, pickling, passivation, polishing, coating, lining, oiling, etc.;

ASME stamp available;

Specifications:

Item	Descriptions
DN	100mm-6000mm (customized size available)
Wall Thickness	3mm-150mm (customized thickness available)
Standard/Norm	ASME/ANSI, DIN, GB, EN, JIS, GOST, etc.
Material	Incoloy 800, Incoloy 800H, Incoloy 800HT, Incoloy 825, Incoloy 840, Incoloy 901, Incoloy 925, Incoloy 20, Incoloy 330, Incoloy 25-6Mo, N08800, N08810, N08811, N08825, N06600, N06601, N06625, NS111, NS112, NS142, NS312, NS313, NS336, GH4169, GH4145, W.Nr.1.4876, W.Nr.1.4958, W.Nr.1.4959, NA12, NA14, NA15, NA16, NA21, NA51, HASTELLOY B-2, HASTELLOY B-3, HASTELLOY C-4, HASTELLOY C-22, HASTELLOY C-276, HASTELLOY C-2000, HASTELLOY G-30 , HASTELLOY G-35, MONEL 400, MONEL 401, MONEL 404, MONEL R-405, MONEL K-500, etc.
Structure	Seamless or welded
Process Type	Hot pressing, cold pressing, cold spinning
Connection Type	Butt-welded
Edge Type	Bevel, plain or as required

Pictures:

Nickel Alloy Hemispherical Head

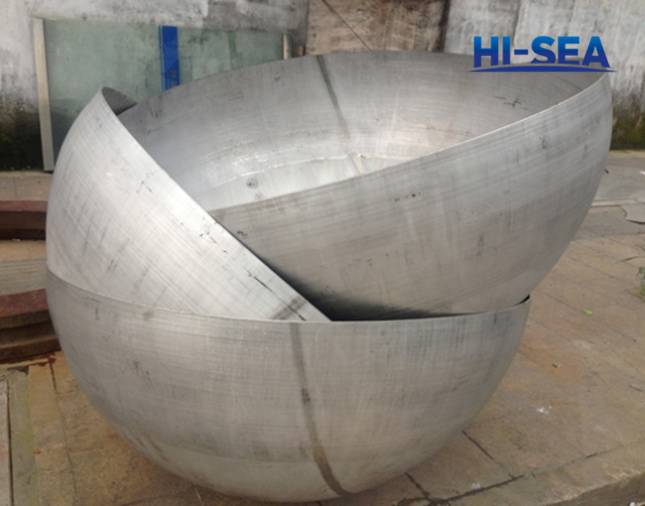

Nickel Alloy Hemispherical Head Finished

Nickel Alloy Hemispherical Head

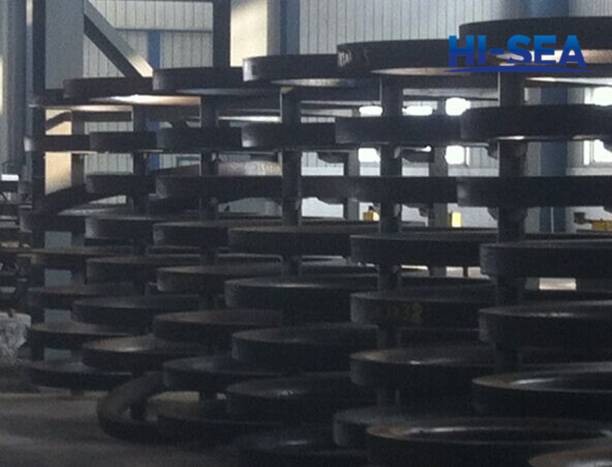

Nickel Alloy Hemispherical Head Moulds

(For more detailed specifications or requirements, please contact oildept@hiseamarine.com or Aiphen on Skype.)
