Portable ABC powder Fire Extinguisher

Portable ABC powder Fire Extinguisher

Portable dry powder extinguisher is a kind of light, efficient and movable fire control equipment based on ABC dry powder extinguishing agent-ammonium phosphate. The driving gas-nitrogen is filled in a full-sealed container. When there is a fire, the extinguishing agent, driven by nitrogen, will spray from the bottle and put out fire. This kind of fire extinguisher is able to put out fire quickly and is convenient for use. What’s more, it is very safe and reliable.

Portable dry power fire extinguisher applies to put out just burning fires of Class A (ordinary solid material fire), Class B (flammable liquid fire), Class C (gas fire) and Class E (charged equipment fire). It is widely used to prevent and control fire in factory, school, restaurant, department, warehouse, vehicle and ship.

Product detail:

Item: Portable ABC powder Fire Extinguisher

Color: Bright Red or the color you want

Valve: Big Black Aluminum Valve

Weight: 1~12kg

Filling charge: ABC powder

Fire Rating 8A 34B

Temperature Range (°C) : -30 °C ~ + 60 °C

Portable powder ABC fire extinguisher parameter

Type	1KG	2KG	3KG	4KG	5KG	6KG	8KG	9KG	12KG
Out-Diameter(mm)	90	110	130	130	150	160	180	182	180
Cylinder Length(mm)	235	305	355	400	420	430	460	490	600
Cylinder weight(mm)	0.55	0.93	1.42	1.5	2.0	2.1	2.54	3.26	3.95
Extinguisher Weight(kg)	1.85	3.35	4.85	6	7.7	8.5	11	12.7	16.45
Working Pressure(bar)	14	14	14	14	14	14	14	14	14
Test Pressure(bar)	25	25	25	25	25	25	25	25	25
Material	St12	St12	St12	St12	St12	St12	St12	St12	St12

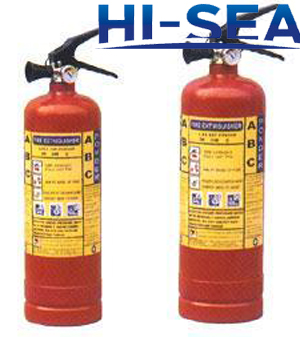

photo of Portable ABC powder Fire Extinguisher
