Silencer for Venting of Compressed Air
[Search Related Products]
1. Manufacture standard:GB 12348-1990.
2.Inspection standard:GB/T 14623-1993.
3.Silencer absorbance:¡Ý30dB.
4.Flange standard:HG,GB,HGJ,JB,ANSI,,DIN,BS,NF.
5.Air displacement:12¡«604m3/h.
6.Material:A3,304,304L,316,316L.
7.Sealing gasket:NBR,PTFE,Metal,Graphite.
8.Operating temprature:-80¡æ¡«540¡æ.
9.Fundamental dimensions of Silencer for Venting of Compressed Air:
|
D/mm |
¦µ1/mm |
H/mm |
H1/mm |
V/(m3/min) |
|
350 |
550 |
1800 |
100 |
12-18 |
|
526 |
800 |
2000 |
100 |
54-96 |
|
700 |
1000 |
2500 |
150 |
100-204 |
|
860 |
1200 |
3000 |
150 |
200-320 |
|
1038 |
1400 |
3000 |
200 |
288-340 |
|
1210 |
1700 |
3500 |
200 |
392-460 |
|
1380 |
1700 |
3500 |
200 |
512-604 |

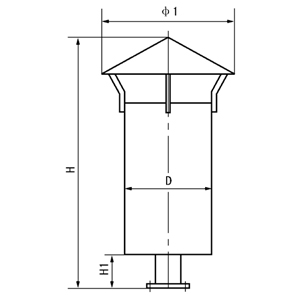

10.Drawing of Silencer for Venting of Compressed Air:
