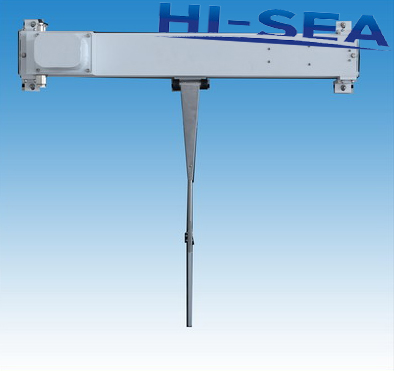

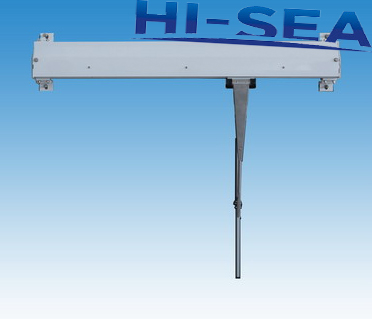

Straight Line Marine Wiper with the Heater

Straight Line Marine Wiper with the Heater

The one with the heater is mainly used in the frozen or cold environment.To obtain good vision in the rain, snow, ice or dust environment, the window wiper and clear view screen are necessary equipment for ship. And installation of them for marine ships is mandatory requirement of classification society. There are two types of this product. One is with the internal motor, and the other one is with the external motor. This window wiper is enclosed with heater on its shell guide to guarantee the smooth scrape in freezing weather. If you don’t need the heater, you can also choose the product without the heater. If you have any questions , you can contact us, we will give you the detailed answers.Wiping distance,case length ,blade length and arm length can be customized as required.

Parameters:

1.Voltage:AC220V

2.Power supply frequency:50HZ/60HZ

3.Length of the blade: Customized

4.Length of the arm: Customized

5.Wiping speed:0.3~1.2m/s

6.The power of the heater:≤500W

7.Protective level:IP56

8.Weight:≤26kg

9.Power box external dimensions:

Box(mm):250x200x145

Mounting dimensions:280x170

Type1 The Straight Line Marine Wiper with the Internal Motor

Type2The Straight Line Marine Wiper with the External Motor
