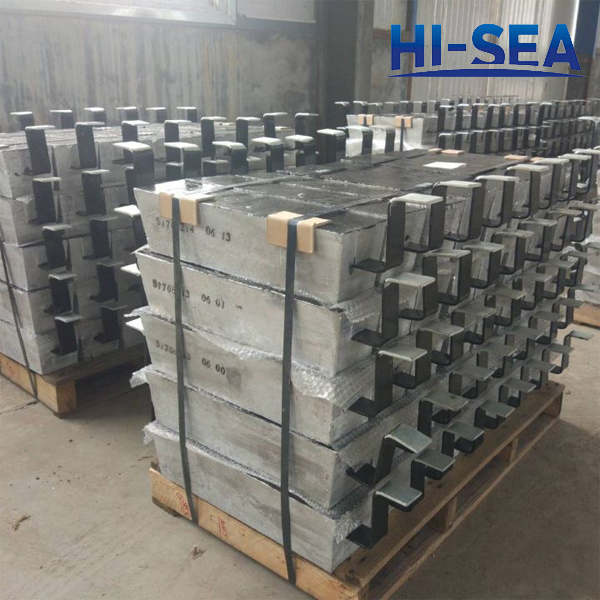

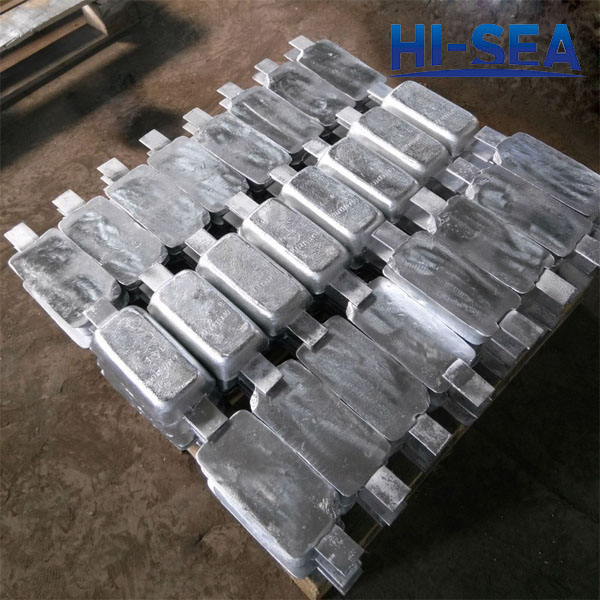

Welding Type Zinc Anode for Ship Hull

Welding Type Zinc Anode for Ship Hull

Zinc alloy sacrificial anode is used for the metal anti-corrosion cathodic protection of the ships, water ballast tanks, mechanical equipment, marine engineering and port facilities, drilling platform, wharf, seawater condenser, pump in sea water medium as well as the pipes and cables in low resistivity soil. Otherwise, we can produced according to your drawings and specifications.

Implementing Standard

GB/T4950-2002

Main Performance

Anode has small autolysis, high current efficiency and excellent self-regulating property when current occurs. Its protection period is long up to 20 to 30 years, generally no ‘over protection’ phenomenon occurring.

Chemical Composition (%)

Chemical Element	Al	Cd	Impurity Element				Zn
Chemical Element	Al	Cd	Fe	Cu	Pb	Si	Zn
Content	0.3~0.6	0.05~0.12	≤0.005	≤0.005	≤0.006	≤0.125	margin

Electrochemical Properties

Electrochemical Properties

Open Circuit Potential

Working Potential

Actual Capacitance

(Ah/kg)

Consumption Rate

(Ah/kg)

Current Efficiency

Dissolution Performance

In Sea Water

(1mA/cm2)

-1.09~-1.05

-1.05~-1.08

≥780

≤11.23

≥95

Surface dissolution is even, while the corrosion products are easy to fall off

In Soil

(0.03mA/cm2)

≤-1.05

≤-1.03

≥530

≤17.25

≥65

Welding Type Zinc Anode for Ship Hull (Single Iron Foot)

Type	Specification (mm)	Iron Foot Size (mm)				Net Weight (kg)	Gross Weight (kg)
Type	A×B×C	D	E	F	G	Net Weight (kg)	Gross Weight (kg)
ZH-1	800×140×60	900	45	5~6	8~10	45.4	47.0
ZH-2	800×140×50	900	45	5~6	6~8	37.4	39.0
ZH-3	800×140×40	900	45	5~6	5~6	29.5	31.0
ZH-4	600×120×50	700	40	5~6	6~8	24.0	25.0
ZH-5	400×120×50	470	35	4~5	6~8	15.3	16.0
ZH-6	500×100×40	580	40	4~5	5~6	12.7	13.6
ZH-7	400×100×40	460	30	4~5	5~6	10.6	11.0
ZH-8	300×100×40	360	30	3~4	5~6	7.2	7.5
ZH-9	250×100×40	310	30	3~4	5~6	6.2	6.5
ZH-10	180×70×40	230	25	3~4	5~6	3.3	3.5

Welding Type Zinc Anode for Ship Hull (Double Iron Feet)

Type	Specification (mm)	Iron Foot Size (mm)				Net Weight (kg)	Gross Weight (kg)
Type	A×B×C	D	E	F	G	Net Weight (kg)	Gross Weight (kg)
ZH-11	300×150×50	360	30	4~5	5~6	13.7	14.5
ZH-12	300×150×40	360	30	4~5	5~6	10.7	11.5

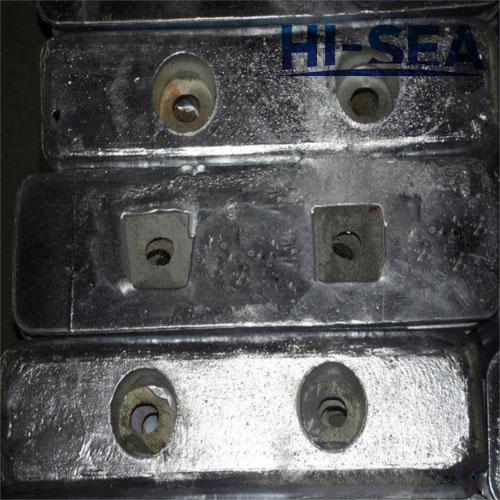

Bolt Connection Type Zinc Anode for Ship Hull

Type	Specification (mm)	Iron Foot Size (mm)				Net Weight (kg)	Gross Weight (kg)
Type	A×B×C	D	E	F	G	Net Weight (kg)	Gross Weight (kg)
ZH-13	300×150×50	250	50	3~4	8~10	11.6	12.0
ZH-14	300×150×40	250	50	3~4	8~10	8.6	9.0

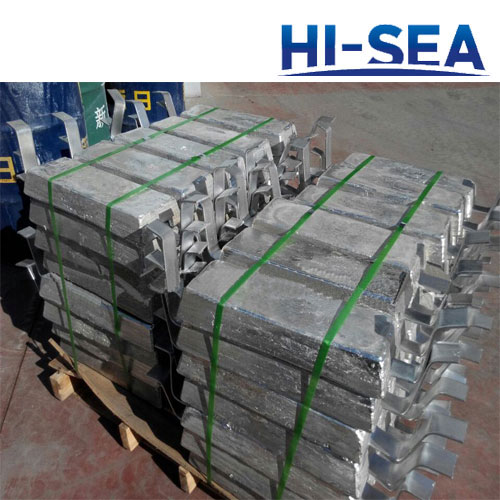

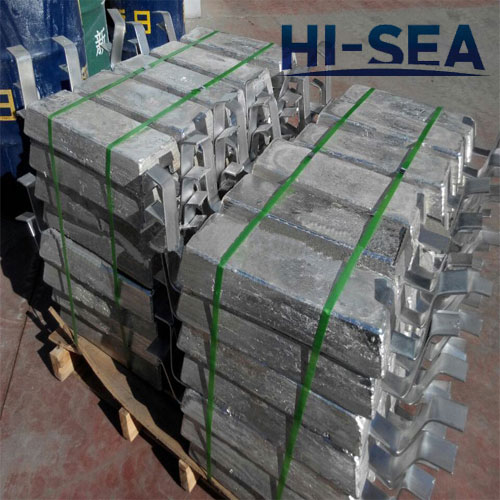

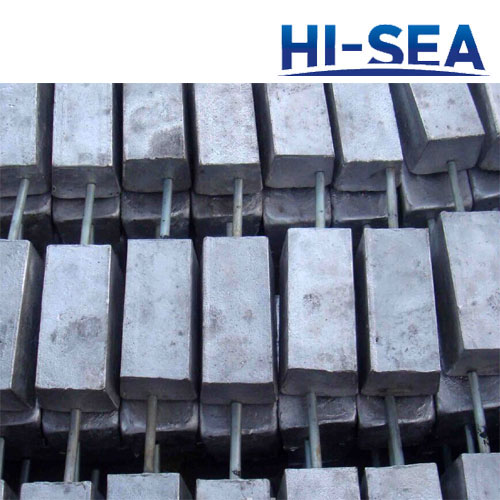

Common Used Zinc Anode for Ballast Water Tank

Type	Specification (mm)	Iron Foot Size (mm)					Net Weight (kg)	Gross Weight (kg)
Type	A×(B1+B2)×C	D	E	F	G	H	Net Weight (kg)	Gross Weight (kg)
ZT-1	500×(115+135)×130	800	50	6	40	60	53.5	56.0
ZT-2	1500×(65+75)×70	1800	-	Φ16	20	40	48.3	50.0
ZT-3	500×(110+130)×120	800	50	6	40	60	48.0	50.0
ZT-4	1000×(58.5+74)×65	1300	-	Φ16	20	40	31.8	33.0
ZT-5	800×(56+74)×65	1100	-	Φ16	20	40	24.0	25.0
ZT-6	1150×(48+54)×51	1450	-	Φ1	15	35	18.6	20.0
ZT-7	250×(80+100)×85	310	30	4	6~8	0	12.8	13.0
ZT-8	200×(70+90)×70	260	30	3	6~8	0	7.3	7.5
Note 1: ZT-1& ZT-8 are flat type anodes; Note 2: ZT-2, ZT-4,ZT-5 & ZT-6 anodes’ iron feet are round bar steel.

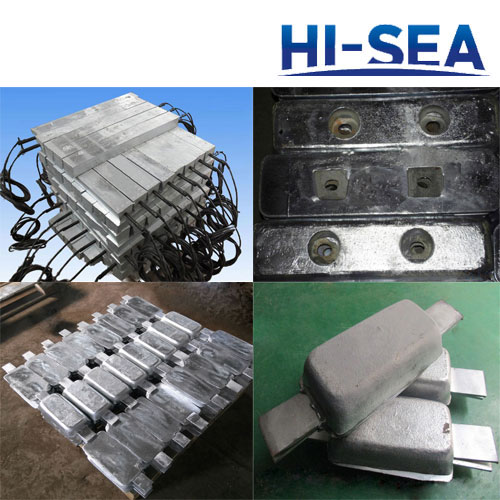

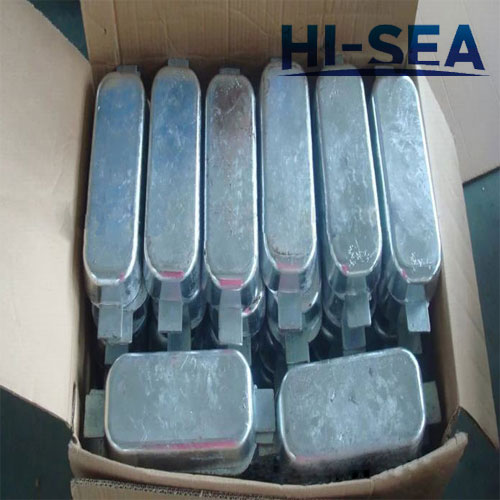

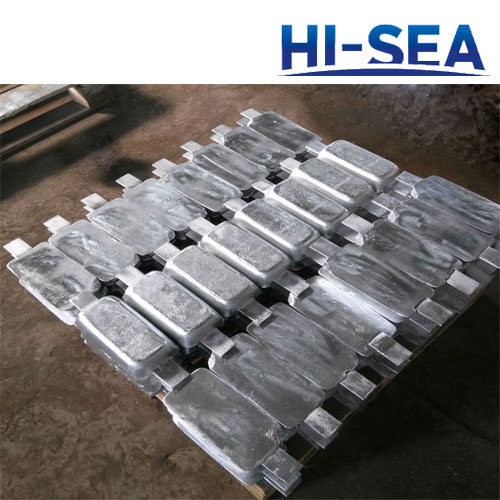

Zinc Alloy Sacrificial Anode for Ships

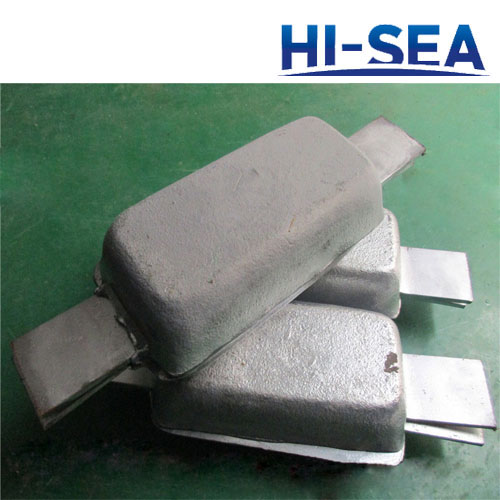

Welding Type Zinc Anode for Ship Hull

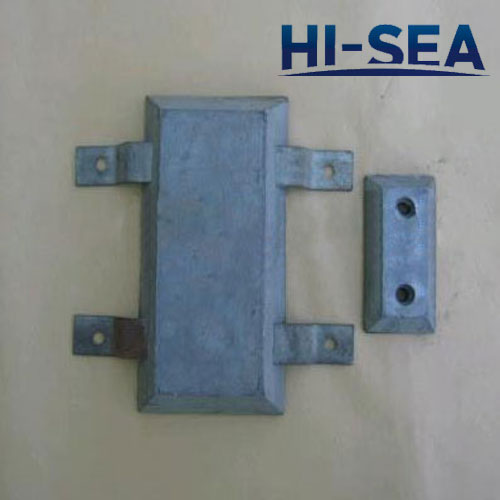

Welding Sacrificial Anode with Double Iron Feet

Welding Type Zinc Anode for Ship Hull

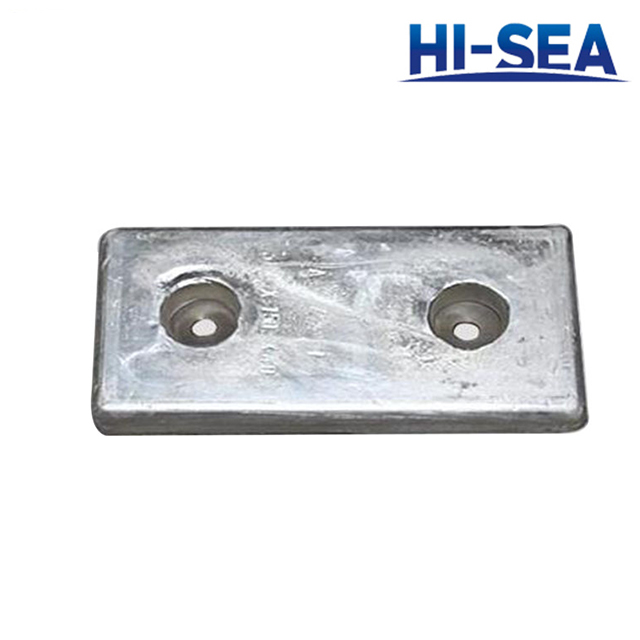

Bolt Connection Type Zinc Anode for Ship Hull
