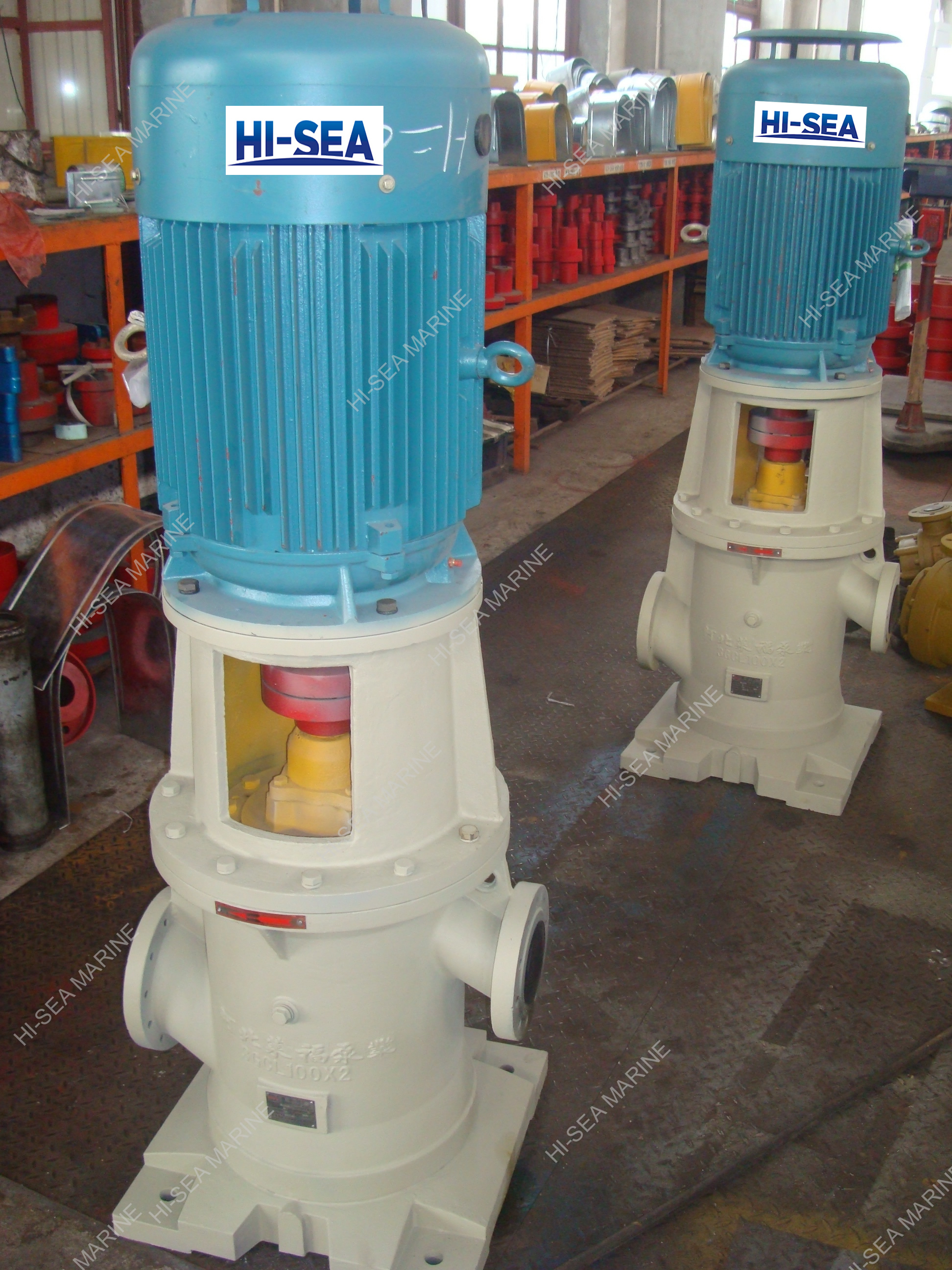

3GCL Marine Vertical Three Screw Pump

Applications:

Work as transfer pump ,loading pump, booster pump , lubricating pump , inject pump etc.

Petroleum industry: oil, light oil, diesel , lube oil, gasoline

Ship building industry: boiler fuel oil, sealing oil, marine loading, ballast, sewage

Power industry: oil, main machine lubricating oil

Hydranlic engineering: hydranlic oil

Mechanical Parameter

◆ Type：

Vertical installed marine pump

◆ Characteristic:

3GCL Vertical Three Screw Pump has characteristics of steady operating, low noise, long life and high efficiency.

◆ Temperature:

The max. environment temperature is 50℃, the max. use temperature is 80℃.

◆ Shaft seal:

3GCL Vertical Three Screw Pump adopts mechanical sealing. It also adopts the filling seal according to the requirement of customer.

◆ Main technical parameters

Discharge pressure: 0.6-2.5Mpa

Suitable flow: 0.6-123m3/h

Speed: 970rpm~2900rpm

Model Explanation

for example 3GCL 70*2/ 0.6
3GCL — Vertical Marine Three Screw Pump
70*2 — Specifications and Code
0.6 — Rated Pressure Mpa

Performance Parameter

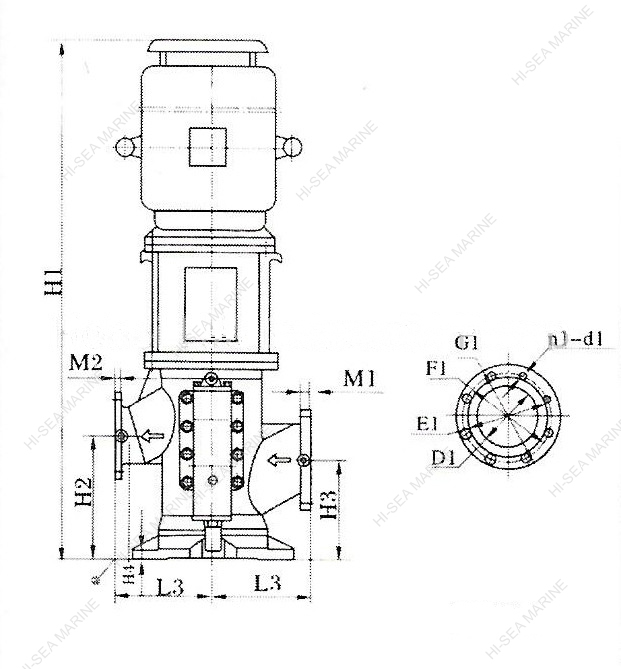

Structure


Our Certification
