G Marine Mono Screw Pump
[Search Related Products]
Applications:
1. Liquid with different viscosity, especially, the thick medium which is difficult to transfer.
2. Liquid with different concentration and dry material which is separated and dehydrated.
3. Liquid which contains solid particle, fiber and suspended matter.
4. Mixture of liquid, gas and solid.
5. Sensibility liquid which could not be mixed cut and robs.
6. Corrosive liquid.
¡ô Features
G Series Mono Screw Pump has wide application. It could transfer all flowing medium and non-running material.
G Series Mono Screw Pump has steady flow and pressure, no pulsation.
Change the speed, so the output flow be modified. It could be used in measuring input.
G Series Mono Screw Pump has strong inhale power, low working noise, no leak and temperature rising.
¡ô Technical parameter
Capacity: 0.1m3/h~150m3/h
Pressure: 0.6Mpa~2.4Mpa
Performance Parameter
Model |
Pressure in the delivery branch 0.3MPa |
Pressure in the delivery branch 0.6MPa |
|||||||
Speed |
Caapacity |
Shaft power |
Motor |
Speed |
Capacity |
Shaft power |
Motor |
|
|
|
|||||||||
r/min |
m3/h |
kw |
r/min |
m3/h |
kw |
||||
G25-1 |
720 |
2.45 |
0.47 |
Y132S-8(2.2KW) |
720 |
2.2 |
0.69 |
Y132S-8(2.2KW) |
|
570 |
1.89 |
0.39 |
YCJ71(0.75KW) |
579 |
1.6 |
0.54 |
YCJ71(1.1KW) |
||
506 |
1.63 |
0.35 |
513 |
1.4 |
0.35 |
||||
445 |
1.45 |
0.31 |
452 |
1.14 |
0.45 |
||||
388 |
1.18 |
0.28 |
393 |
0.9 |
0.39 |
||||
334 |
1 |
0.25 |
339 |
0.7 |
0.34 |
||||
284 |
0.76 |
0.22 |
288 |
0.53 |
0.31 |
||||
` |
579 |
3.9 |
0.7 |
YCJ71(1.1KW) |
579 |
3.25 |
1.06 |
YCJ71(1.5KW) |
|
513 |
3.4 |
0.61 |
513 |
2.8 |
0.95 |
||||
452 |
3 |
0.54 |
452 |
2.3 |
0.83 |
||||
393 |
2.5 |
0.46 |
393 |
1.9 |
0.73 |
||||
339 |
2 |
0.42 |
339 |
1.5 |
0.63 |
||||
288 |
1.6 |
0.36 |
288 |
1.15 |
0.54 |
||||
217 |
1.1 |
0.29 |
|
|
|
||||
G40-1 |
579 |
7.9 |
1.06 |
YCJ71(1.5KW) |
587 |
6.8 |
1.8 |
YCJ71(2.2KW) |
|
513 |
6.9 |
0.93 |
520 |
5.7 |
1.61 |
||||
452 |
5.9 |
0.82 |
458 |
4.8 |
1.43 |
||||
393 |
5 |
0.74 |
399 |
4 |
1.21 |
||||
339 |
4.2 |
0.63 |
344 |
3 |
1.05 |
||||
288 |
3.3 |
0.53 |
292 |
2.2 |
0.9 |
||||
240 |
2.65 |
0.47 |
244 |
1.6 |
0.75 |
||||
186 |
1.7 |
0.36 |
YCJ132(1.1KW) |
|
|
|
|||
G50-1 |
587 |
15.7 |
2.42 |
YCJ71(3KW) |
571 |
13.4 |
3.61 |
YCJ80(4KW) |
|
520 |
13.8 |
1.95 |
504 |
11.5 |
3.2 |
||||
458 |
12.1 |
1.64 |
442 |
9.5 |
2.79 |
||||
399 |
10.2 |
1.45 |
383 |
7.5 |
2.4 |
||||
344 |
8.8 |
1.16 |
|
327 |
6 |
2.025 |
|
||
292 |
7.1 |
0.96 |
YCJ71(3KW) |
275 |
4.4 |
1.71 |
YCJ80(4KW) |
||
244 |
5.6 |
0.85 |
YCJ71(2.2KW) |
223 |
2.8 |
1.46 |
YCJ80(3KW) |
||
171 |
3.5 |
0.6 |
YCJ32(2.2KW) |
|
|
|
|
||
G70-1 |
571 |
31 |
4.3 |
YCJ80(5.5KW) |
545 |
25 |
7.04 |
YCJ100(11KW) |
|
504 |
27 |
3.43 |
479 |
21 |
6.11 |
||||
443 |
24 |
2.99 |
417 |
17.9 |
5.47 |
||||
383 |
20 |
2.53 |
360 |
13.5 |
4.7 |
||||
327 |
16.5 |
2.22 |
305 |
9.5 |
3.99 |
||||
244 |
12 |
1.63 |
YCJ100(4KW) |
250 |
7 |
2.88 |
YCJ100(7.5KW) |
||
208 |
8.8 |
1.5 |
YCJ160(4KW) |
194 |
3.8 |
2.47 |
YCJ180(7.5KW) |
||
149 |
5.2 |
0.95 |
|
|
|
||||
G85-1 |
545 |
57 |
7.2 |
YCJ100(11KW) |
545 |
50 |
13 |
YCJ112(15KW) |
|
479 |
52 |
6.8 |
479 |
44 |
12.1 |
||||
417 |
41.8 |
6.2 |
417 |
35 |
9.9 |
||||
360 |
36.1 |
5.8 |
360 |
28.1 |
8.8 |
||||
305 |
30 |
5.5 |
305 |
22 |
7.3 |
||||
254 |
24 |
5 |
YCJ112(11KW) |
254 |
16.2 |
6.5 |
YCJ112(11KW) |
||
194 |
17.5 |
4.6 |
YCJ180(7.5KW) |
189 |
9.5 |
5.8 |
YCJ200(11KW) |
||
121 |
10.4 |
4.2 |
|
|
|
||||
G20-2 |
970 |
1.45 |
0.9 |
Y100L-6(14.5KW) |
970 |
1.35 |
1.07 |
Y100L-6(14.5KW) |
|
720 |
1 |
0.7 |
Y132S-8(2.2KW) |
720 |
0.92 |
0.83 |
Y132S-8(2.2KW) |
||
579 |
0.75 |
0.65 |
YCJ71(1.1KW) |
579 |
0.68 |
0.76 |
YCJ71(1.1KW) |
||
513 |
0.62 |
0.6 |
513 |
0.54 |
0.7 |
||||
452 |
0.52 |
0.55 |
452 |
0.4 |
0.65 |
||||
393 |
0.35 |
0.47 |
393 |
0.28 |
0.52 |
||||
G25-2 |
720 |
0.41 |
1.14 |
Y132S-8(2.2KW) |
720 |
2.2 |
1.43 |
Y132S-8(2.2KW) |
|
579 |
1.86 |
0.96 |
YCJ71(1.5KW) |
579 |
1.65 |
1.18 |
YCJ71(1.5KW) |
||
513 |
1.62 |
0.85 |
513 |
1.4 |
1.05 |
||||
452 |
1.44 |
0.75 |
452 |
1.14 |
0.96 |
||||
393 |
1.15 |
0.69 |
393 |
0.9 |
0.86 |
||||
339 |
0.99 |
0.61 |
339 |
0.7 |
0.7 |
||||
288 |
0.81 |
0.53 |
288 |
0.53 |
0.66 |
||||
G35-2 |
587 |
3.9 |
1.7 |
YCJ71(2.2KW) |
587 |
3.4 |
2.22 |
YCJ71(3KW) |
|
520 |
3.5 |
1.61 |
520 |
3 |
2 |
||||
458 |
2.9 |
1.35 |
458 |
2.5 |
1.69 |
||||
399 |
2.5 |
1.15 |
399 |
2 |
1.5 |
||||
344 |
2.05 |
1.08 |
344 |
1.6 |
1.28 |
||||
292 |
1.7 |
0.87 |
292 |
1.15 |
1.15 |
||||
244 |
1.35 |
0.72 |
247 |
0.75 |
1 |
YCJ80(3KW) |
|||
G40-2 |
571 |
7.4 |
2.91 |
YCJ80(4KW) |
571 |
6.8 |
3.73 |
YCJ180(5.5KW) |
|
504 |
6.3 |
2.46 |
504 |
5.8 |
3.35 |
||||
442 |
5.4 |
2.19 |
442 |
4.9 |
2.87 |
||||
383 |
4.5 |
1.89 |
383 |
4.2 |
2.45 |
||||
327 |
3.8 |
1.63 |
327 |
3.3 |
2.15 |
||||
275 |
3 |
1.36 |
244 |
2 |
1.79 |
||||
223 |
2.2 |
1.12 |
YCJ80(3KW) |
208 |
1.6 |
1.46 |
YCJ100(4KW) |
||
196 |
1.9 |
1.07 |
YCJ132(3KW) |
|
|
|
YCJ160(4KW) |
||
G50-2 |
537 |
13.7 |
4.66 |
YCJ100(7.5KW) |
545 |
13 |
6.48 |
YCJ100(11KW) |
|
472 |
11.7 |
3.92 |
479 |
10 |
5.65 |
||||
411 |
10 |
3.41 |
417 |
8.8 |
4.86 |
||||
355 |
8.6 |
2.9 |
360 |
7 |
4.16 |
||||
301 |
7.2 |
2.46 |
305 |
5.5 |
3.58 |
||||
250 |
5.1 |
2.14 |
250 |
3.8 |
3.02 |
YCJ100(7.5KW) |
|||
208 |
3.9 |
1.6 |
YCJ160(5.5KW) |
194 |
2.3 |
2.2 |
YCJ180(7.5KW) |
||
G70-2 |
545 |
30 |
9.8 |
YCJ100(11KW) |
545 |
26 |
13.5 |
YCJ112(15KW) |
|
479 |
26 |
9 |
479 |
23 |
12.8 |
||||
417 |
22.5 |
8.1 |
417 |
20 |
12.1 |
||||
360 |
18 |
7.5 |
360 |
16 |
9.7 |
||||
305 |
15 |
6.7 |
305 |
12 |
8.78 |
||||
254 |
12 |
6.1 |
YCJ112(11KW) |
254 |
9.2 |
6.4 |
YCJ112(11KW) |
||
194 |
7.5 |
5 |
YCJ180(7.5KW) |
189 |
3.2 |
6 |
YCJ200(11KW) |
||
121 |
3 |
4.5 |
|
|
|
|

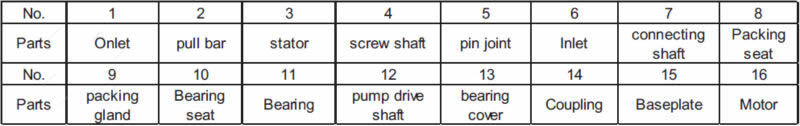

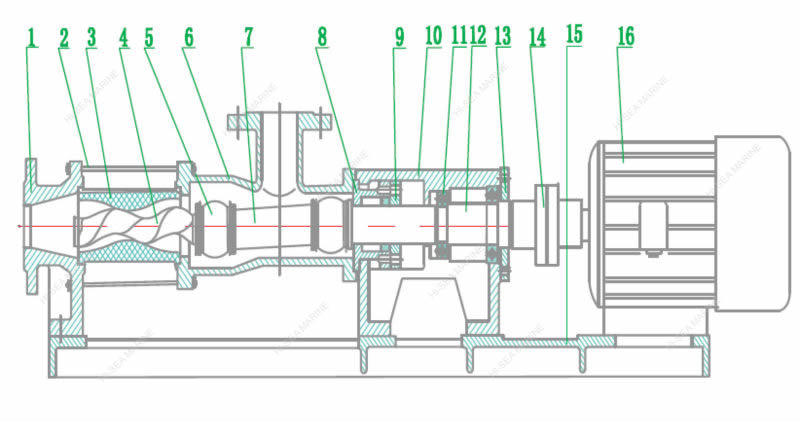

Structure
