40T Motor Hydraulic Garbage Grab

40T Motor Hydraulic Garbage Grab

Motor hydraulic garbage grab is an orange peel type grab, the peels can be designed with all sealed or half-sealed with long teeth to insert garbage. It has six or eight claws, and each claw is driven by an oil cylinder. The garb head has plug-in for cable connection to crane.

Product Details:

1. Rated capacity: 5-25 ton

2. Grab Volume: 25-17 m³

3. Dead weight: 2.8-9.4 ton

4. Low operation height

5. Variable displacement pump

6. Simple structure, easy to operation

7. Using 3D Virtual Design to secure outward appearance

Hi-sea provides
1. Free grab design;
2. Designs to customer specification, including volume and unladen weight;
3. Assembly and commissioning by SHYP's specialist technicians;
4. Acceptance testing including certification such as BV, LRS, GL, DNV, ABS, and etc.

Specification:

Rated Capacity

Volume

Dead Weight

Motor Power(KW)

A

B

C

D

T

T

380V 50HZ

440V 60HZ

mm

mm

mm

mm

5

2.5

2.8

18.5

21

2247

3572

3214

2895

8

3.2

3.7

18.5

21

2604

3683

3214

2876

10

5

4.8

22

26

3060

4420

3720

3295

16

8

5.9

30

35

3463

5288

3930

3294

20

12

8.3

37

43

3960

5850

4560

4100

25

17

9.4

45

52

4200

6100

4780

4400

40T Motor Hydraulic Garbage Grab

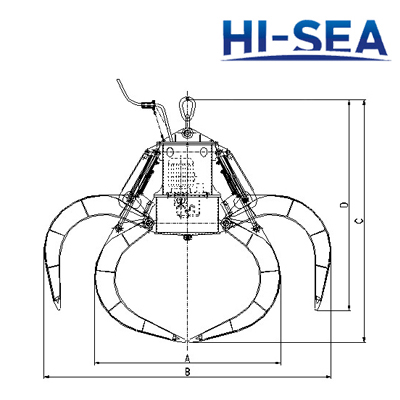

Sketch of the motor hydraulic garbage grab
