Rectangle Garbage Grab

Rectangle Garbage Grab

It is suitable for crane with two or four ropes to clear up waste or sundries, or used on special working site such as reservoir, gate dam, river course, freight train and so on. It has simple structure and easy to operate. This kind of grab has two scoops with teeth, which make it easy to insert into garbage and make water leak timely.

Product Details:

1.Long Service Life

2.Low upper head profile.

3.Wide openings allow for cleaning out corners of crane body

4.High tensile steel used throughout. Wear resistant steel used on all spade tips.

5.Feed lines are directed upward in combination with a hose protection shield.

Specification:

Rated Capacity(T)

Volume(m³)

Dead Weight(T)

Wire Rope Dia.(mm)

A(mm)

B(mm)

C(mm)

D(mm)

E(mm)

10

5

7.2

22

1900

2548

2450

3088

4428

16

8

7.2

28

2200

2982

2866

3613

5181

20

10

9

32

2400

3212

3078

3892

5580

25

12.5

11.5

32

2600

3459

3325

4192

6009

Rectangle Garbage Grab

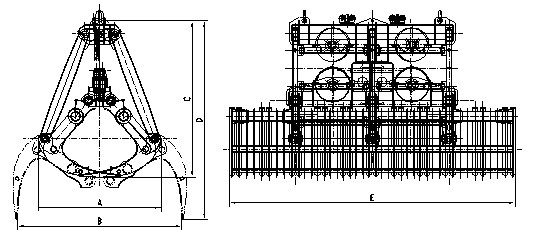

Sketch of the rectangle garbage grab
