The most commonly used aluminum alloy anodes are Al-Zn-In series and Al-Zn-Hg series, applicable to the cathodic protection of ships, ports and marine facilities in seawater, sea water cooling system and reservoir deposited water site and other constructions.

Aluminum zinc indium system (AZI) sacrificial anode is casted by high purity aluminum, zinc, indium and other metal alloy. Aluminum alloy anode is produced in line with the implementation of GB4948-2002 Aluminum Zinc Indium Alloy Sacrificial Anode.

The aluminum alloy anode can prevent the corrosion of steel structure in seawater, widely used for the anti-corrosion of the ship hull, pressurized water tank, seawater pipeline, port and terminal facilities, marine engineering, drilling platform, condensator and pipelines in soil. The performance of aluminum anode is influenced by the chemical composition of the alloy, so we offer different composition of aluminum alloys to meet our customer requirements.

Implementing Standard:

U.S.Mil-A-1800K/W, gb4948-2002

Main Performance:

The driving voltage is low; light weight; high current efficiency.

Application:

Aluminum alloy sacrificial anode is used for the metal anti-corrosion cathodic protection of ships, mechanical equipment, offshore engineering and port facilities in seawater as well as the protection of pipes, cables and other facilities in mud.

Specifications: 16kg, 22kg, 23kg, 35kg, 50kg, 85kg, 120kg, 131kg, 180kg

Product Categories:

1. Ordinary Aluminum Alloy Sacrificial Anode;

2. Highly Activated Aluminum Alloy Sacrificial Anode;

3. High Efficiency Aluminum Alloy Sacrificial Anode;

4. High Temperature Aluminum Alloy Sacrificial Anode;

5. Bracelet Type Aluminum Alloy Sacrificial Anode.

Note: our company can also design and produce all kinds of special specifications and properties of aluminum alloy sacrificial anode according to the different needs of customers.

Chemical Composition

Alloy Type	Zn	In	Cd	Sn	Mg	Si	Ti	Impurity, ≤			Al
Alloy Type	Zn	In	Cd	Sn	Mg	Si	Ti	Si	Fe	Cu	Al
Al-Zn-In-Sd	2.5-4.5	0.018-0.050	0.005-0.020	-	-	-	-	0.10	0.15	0.01	margin
Al-Zn-In-Sn	2.2-5.2	0.020-0.045	-	0.018-0.035	-	-	-	0.10	0.15	0.01	margin
Al-Zn-In-Si	5.7-7.0	0.025-0.035	-	-	-	0.10-0.15	-	0.10	0.0-15	0.01	margin
Al-Zn-In-Sn-Mg	2.5-4.0	0.020-0.050	-	0.025-0.075	0.50-1.00	-	-	0.10	0.15	0.01	margin
Al-Zn-In-Mg-Ti	4.0-7.0	0.020-0.050	-	-	0.50-1.50	-	0.01-0.08	0.10	0.15	0.01	margin

Electrochemical Properties

Type/Index/Performance	Open Circuit Potential-V(SCE)	Working Potential-V(SCE)	Actual Capacitance(A.h/kg)	Current Efficiency%	Dissolution Status
Ordinary Aluminum Alloy Sacrificial Anode	1.10-1.18	1.05-1.12	≥2400	≥85	Corrosion products are easy to fall off, the surface dissolution is even
High Efficiency Aluminum Alloy Sacrificial Anode	1.10-1.18	1.05-1.15-2	≥2600	≥90
Highly Activated Aluminum Alloy Sacrificial Anode	1.45-1.50	1.40-1.45	≥2080	≥70

Classification of Aluminum Alloy Sacrificial Anodes

Classified by Shapes

Type	Specification mm	Weight kg	Shape
T-AZIC-1	(115+135)×130×1000	46	Trapezoidal bar
T-AZIC-2	(115+135)×130×500	23	Trapezoidal bar
T-AZIC-3	(105+135)×100×500	16	Trapezoidal bar
T-AZIC-4	(58.5+78.5)×68×1000	13.2	Trapezoidal bar
T-AZIC-5	(105+135)×100×300	10	Trapezoidal bar
B-AZIC-6	600×120×50	10	Clintheriform
B-AZIC-7	500×100×40	5.5	Clintheriform
B-AZIC-8	250×100×40	2.5	Clintheriform
Y-AZIC-9	170×150×50	8	Hollow cylinder
Y-AZIC-10	170×100×50	5.5	Hollow cylinder
Y-AZIC-11	100×500×25	5	Hollow cylinder
Y-AZIC-12	100×50×30	1	Hollow cylinder
Note: can also be designed and produced according to the user’s requirements

Classified by Use:

1. Aluminum Anode for Storage Tank

Type	Specification/mm	Weight (kg)
Type	A×(B1+B2)×C	Weight (kg)
AC-1	750×(115+135)×130	35.0
AC-2	500×(115+135)×130	23.0
AC-3	500×(105+135)×100	16.0
AC-4	300×(105+135)×100	10.0

2. Aluminum Anode for Harbor and Marine Engineering Facilities

Type	Specification mm	Weight kg
Type	A×(B1+B2)×C	Weight kg
AI-1	2300×(220+240)×230	310.0
AI-2	1600×(200+210)×220	190.0
AI-3	1500×(170+200)×180	130.0
AI-4	900×(150+170)×160	58.0
AI-5	1500×(148+178)×170	120.0
AI-6	850×(180+220)×180	85.0
AI-7	800×(200+280)×150	60.0
AI-8	700×(160+220)×180	72.5
AI-9	1250×(115+135)×130	56.0
AI-10	1000×(115+135)×130	46.0
AI-11	750×(115+135)×130	35.0
AI-12	500×(115+135)×130	23.0

3. Aluminum Anode for Ballast Water Tank

Type	Specification mm	Weight kg
Type	A×(B1+B2)×C	Weight kg
AT-1	500×(115+135)×130	23.0
AT-2	1500×(65+75)×70	21.5
AT-3	500×(110+130)×120	20.0
AT-4	1000×(58.5+78.5)×68	13.2
AT-5	800×(56+74)×65	10.0
AT-9	1150×(48+54)×51	9.0
AT-7	250×(80+100)×85	5.0
AT-8	200×(70+90)×70	3.0

4. Common Aluminum Anode for Seawater Cooling System

Type	Specification mm	Weight kg
Type	A×(B1+B2)×C	Weight kg
AE-1	1200×(200+280)×150	120.0
AE-2	800×(200+280)×150	80.0
AE-3	1000×(115+135)×130	46.0
AE-4	500×(115+135)×130	23.0
AE-5	1000×(80+100)×80	20.0
AE-6	500×(105+135)×100	16.0
AE-7	500×(80+100)×80	10.0
AE-8	400×(110+120)×50	7.0
AE-9	300×(140+160)×40	5.0
AE-10	200×(90+110)×40	3.0
AE-11	300×50 Disc Shape	11.5
AE-12	360×40 Disc Shape	9.0
AE-13	300×40 Disc Shape	7.5
AE-14	200×50 Disc Shape	4.0
AE-15	180×50 Disc Shape	3.5
AE-16	120×100 Disc Shape	2.5

5. Common Aluminum Anode for Ship Hull

Type	Specification mm	Weight kg
Type	A×B×C	Weight kg
AH-1	800×140×60	17.0
AH-2	800×140×50	15.0
AH-3	800×140×40	12.0
AH-4	600×120×50	10.0
AH-5	400×120×50	6.5
AH-6	500×100×40	5.5
AH-7	400×100×40	4.5
AH-8	300×100×40	3.5
AH-9	250×100×40	2.5
AH-10	180×70×35	1.2
AH-11	300×150×50 Double Iron Feet	5.8
AH-12	300×150×40 Double Iron Feet	4.6
AH-13	300×150×50 Bolt Type	5.8
AH-14	300×150×40 Bolt Type	4.8

6. Aluminum Anode for Buried Pipeline

Type	Specification mm	Iron Feet Size mm			Weight kg
Type	A×2B×C×D	E	F	H	Weight kg
AP-5	420×622×51×20	480	4	6	AP-5
AP-6	254×559×76×25	284	4	6	AP-6
AP-7	400×503×51×25	430	4	6	AP-7
AP-8	562×371×51×25	592	4	6	AP-8

7. Bolt Type Aluminum Alloy Anode

8. Disc Type Aluminum Sacrificial Anode

9. Bracelet Type Aluminum Anode

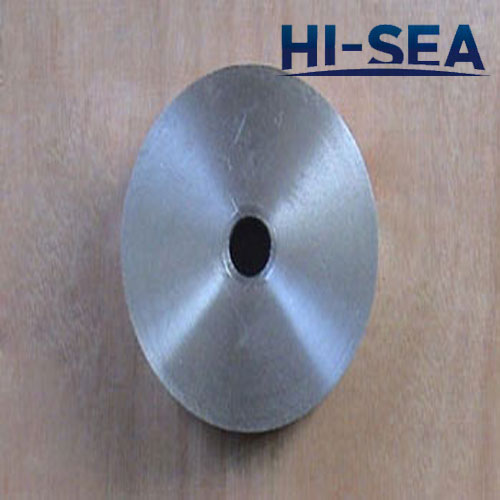

Disc Aluminum Sacrificial Anode

Bracelet Type Aluminum Anode

Ship Hull Aluminum Anode with Double Iron Feet

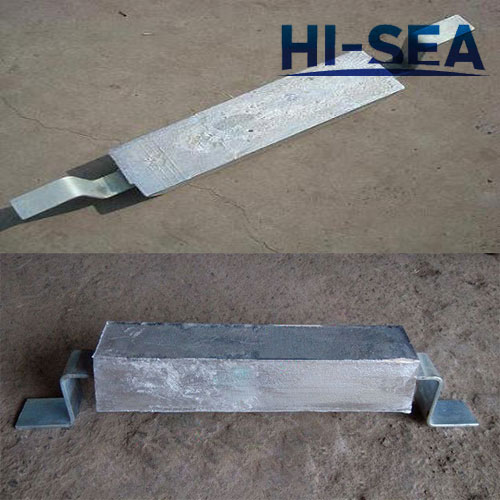

Aluminum Alloy Sacrificial Anode for Storage Tank

Aluminum Anode for Ballast Water Tank

Aluminum Anode for Harbor and Marine Engineering Facilities

Bolt Type Aluminum Alloy Anode
