Brake Type Plate Shears
1. Rack, knife rack to eliminate stress, welding machine, durable;
2. Advanced integrated hydraulic system reliability;

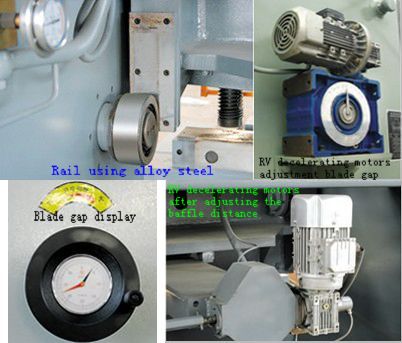

3. Supported by three rolling guide to eliminate the bearing clearance, to ensure the quality of shear;
4. Manual or electric blade gap adjustment, quick and accurate;
5. Upper and lower blade edge with four, increase the use of time;
6. Electric shear angle can be adjusted, reducing the shear deformation plate;
7. Fixed-length cut with piecewise functions;
8. Electric back gauge, digital display, accurate and reliable;
9. Cut face, shear rate, shear thickness better than with the standard hydraulic shears.
Main Parameters:
|
Model |
Shearing Thickness |
Shearing Width |
Strokes |
Backgauge Rang |
Shearing Angler |
Main Power |
|
mm |
mm |
min-1 |
mm |
กใ |
kw |
|
|
QC11Y-4*2500 |
4 |
2500 |
25~45 |
20~600 |
30'~1กใ30' |
5.5 |
|
QC11Y-6*2500 |
6 |
2500 |
16~35 |
20~600 |
30'~1กใ30' |
7.5 |
|
QC11Y-6*3200 |
6 |
3200 |
14~35 |
20~600 |
30'~1กใ30' |
7.5 |
|
QC11Y-6*4000 |
6 |
4000 |
10~30 |
20~600 |
30'~1กใ30' |
7.5 |
|
QC11Y-6*5000 |
6 |
5000 |
10~30 |
20~800 |
30'~1กใ30' |
11 |
|
QC11Y-6*6000 |
6 |
6000 |
8~25 |
20~800 |
30'~1กใ30' |
11 |
|
QC11Y-8*2500 |
8 |
2500 |
14~30 |
20~600 |
30'~2กใ |
11 |
|
QC11Y-8*3200 |
8 |
3200 |
12~30 |
20~600 |
30'~2กใ |
11 |
|
QC11Y-8*4000 |
8 |
4000 |
10~25 |
20~600 |
30'~2กใ |
11 |
|
QC11Y-8*5000 |
8 |
5000 |
10~25 |
20~800 |
30'~2กใ |
15 |
|
QC11Y-8*6000 |
8 |
6000 |
8~20 |
20~800 |
30'~2กใ |
15 |
|
QC11Y-12*2500 |
12 |
2500 |
12~25 |
20~800 |
30'~2กใ |
15 |
|
QC11Y-12*3200 |
12 |
3200 |
12~25 |
20~800 |
30'~2กใ |
15 |
|
QC11Y-12*4000 |
12 |
4000 |
8~20 |
20~800 |
30'~2กใ |
15 |
|
QC11Y-12*5000 |
12 |
5000 |
8~20 |
20~1000 |
30'~2กใ |
22 |
|
QC11Y-12*6000 |
12 |
6000 |
6~20 |
20~1000 |
30'~2กใ |
30 |
|
QC11Y-16*2500 |
16 |
2500 |
12~20 |
20~800 |
30'~1กใ30' |
22 |
|
QC11Y-16*3200 |
16 |
3200 |
12~20 |
20~800 |
30'~1กใ30' |
22 |
|
QC11Y-16*4000 |
16 |
4000 |
8~15 |
20~800 |
30'~1กใ30' |
22 |
|
QC11Y-16*5000 |
16 |
5000 |
8~15 |
20~1000 |
30'~1กใ30' |
30 |
|
QC11Y-16*6000 |
16 |
6000 |
6~15 |
20~1000 |
30'~1กใ30' |
37 |
|
QC11Y-20*2500 |
20 |
2500 |
10~20 |
20~800 |
30'~3กใ |
30 |
|
QC11Y-20*3200 |
20 |
3200 |
10~20 |
20~800 |
30'~3กใ |
30 |
|
QC11Y-20*4000 |
20 |
4000 |
8~15 |
20~800 |
30'~3กใ |
30 |
|
QC11Y-20*5000 |
20 |
5000 |
8~15 |
20~1000 |
30'~3กใ |
37 |
|
QC11Y-20*6000 |
20 |
6000 |
6~15 |
20~1000 |
30'~3กใ |
37 |
|
QC11Y-25*2500 |
25 |
2500 |
8~15 |
20~800 |
30'~1กใ30' |
37 |
|
QC11Y-25*3200 |
25 |
3200 |
8~15 |
20~800 |
30'~1กใ30' |
37 |
|
QC11Y-25*4000 |
25 |
4000 |
6~12 |
20~1000 |
30'~1กใ30' |
37 |
|
QC11Y-32*2500 |
32 |
2500 |
6~12 |
20~1000 |
30'~4กใ |
55 |
|
QC11Y-32*3200 |
32 |
3200 |
8~12 |
20~1000 |
30'~4กใ |
55 |
|
QC11Y-40*2500 |
40 |
2500 |
4~10 |
20~1000 |
30'~4กใ |
55 |
|
QC11Y-40*3200 |
40 |
3200 |
4~10 |
20~1000 |
30'~4กใ |
55 |
