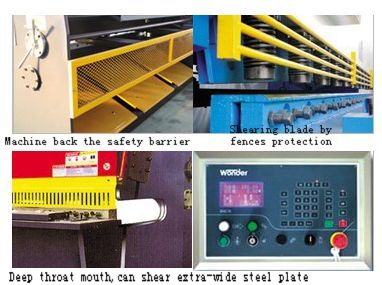

CNC Board Cutting Machine
[Search Related Products]
1. The main machine adopts the structure of series QC12Y hydraulic swing;
2. NC system choose famous at home and abroad special plate shears CNC system;
3. The motor of backgauge can be equipped with importing AC servo motor;
4. The drive element of backgauge adopts importing ball screw and linear guideway;
5. According to the needs of user matching CNC system.
Main Parameters:
|
Model |
Shearing Thickness |
Shearing Width |
Shearing Angle |
Number of Stroke |
Backgauge Rang |
Motor Power |
Size |
|
mm |
mm |
กใ |
min-1 |
mm |
KW |
mm |
|
|
QC12Y-4*3200 |
4 |
3200 |
1กใ30กไ |
18 |
20กซ600 |
5.5 |
3840*1675*1600 |
|
QC12Y-6*2500 |
6 |
2500 |
1กใ30กไ |
18 |
20กซ600 |
7.5 |
3130*1530*1600 |
|
QC12Y-6*3200 |
6 |
3200 |
1กใ30กไ |
14 |
20กซ600 |
7.5 |
3840*1675*1620 |
|
QC12Y-6*4000 |
6 |
4000 |
,1กใ30กไ |
14 |
20กซ600 |
7.5 |
4630*1850*1700 |
|
QC12Y-6*5000 |
6 |
5000 |
1กใ30กไ |
10 |
20กซ800 |
18.5 |
5660*2050*1950 |
|
QC12Y-6*6000 |
6 |
6000 |
1กใ30กไ |
10 |
20กซ800 |
18.5 |
6700*2300*2300 |
|
QC12Y-8*2500 |
8 |
2500 |
1กใ30กไ |
14 |
20กซ600 |
11 |
3130*1530*1600 |
|
QC12Y-8*3200 |
8 |
3200 |
1กใ30กไ |
10 |
20กซ600 |
11 |
3840*1675*1620 |
|
QC12Y-8*4000 |
8 |
4000 |
1กใ30กไ |
8 |
20กซ600 |
11 |
3840*1850*1700 |
|
QC12Y-8*5000 |
8 |
5000 |
1กใ30กไ |
7 |
20กซ800 |
18.5 |
4630*2050*1950 |
|
QC12Y-8*6000 |
8 |
6000 |
1กใ30กไ |
6 |
20กซ800 |
18.5 |
6750*2330*2230 |
|
QC12Y-10*2500 |
10 |
2500 |
1กใ30กไ |
14 |
20กซ800 |
15 |
3130*1580*1800 |
|
QC12Y-10*3200 |
10 |
3200 |
1กใ30กไ |
12 |
20กซ800 |
15 |
3840*1725*1850 |
|
QC12Y-10*4000 |
10 |
4000 |
1กใ30กไ |
12 |
20กซ800 |
15 |
4630*1900*1850 |
|
QC12Y-12*2500 |
12 |
2500 |
1กใ30กไ |
16 |
20กซ800 |
18.5 |
3235*2045*1850 |
|
QC12Y-12*3200 |
12 |
3200 |
1กใ30กไ |
14 |
20กซ800 |
18.5 |
3945*2227*1935 |
|
QC12Y-12*5000 |
12 |
4000 |
1กใ30กไ |
14 |
20กซ800 |
18.5 |
4695*2227*2115 |
|
QC12Y-12*5000 |
12 |
5000 |
1กใ30กไ |
7 |
20กซ1000 |
45 |
6100*3370*2200 |
|
QC12Y-12*6000 |
12 |
6000 |
1กใ30กไ |
6 |
20กซ1000 |
45 |
7100*3370*3050 |
|
QC12Y-12*8000 |
12 |
8000 |
1กใ30กไ |
5 |
20กซ1000 |
45 |
9100*3575*3050 |
|
QC12Y-16*2500 |
16 |
2500 |
2กใ |
16 |
20กซ650 |
18.5 |
3235*2050*3150 |
|
QC12Y-16*3200 |
16 |
3200 |
2กใ |
12 |
20กซ800 |
22 |
3950*2230*1985 |
|
QC12Y-16*4000 |
16 |
4000 |
2กใ |
10 |
20กซ800 |
22 |
4700*2230*2250 |
|
QC12Y-20*2500 |
20 |
2500 |
2กใ30กไ |
5 |
20กซ1000 |
37 |
3290*2900*2250 |
|
QC12Y-20*3200 |
20 |
3200 |
2กใ30กไ |
4 |
20กซ1000 |
37 |
4000*3100*2450 |
|
QC12Y-20*4000 |
20 |
4000 |
2กใ30กไ |
3 |
20กซ1000 |
37 |
4750*3300*2600 |
|
QC12Y-20*6000 |
20 |
6000 |
2กใ30กไ |
3 |
20กซ1000 |
75 |
7050*3480*2800 |
|
QC12Y-25*2500 |
25 |
2500 |
2กใ30กไ |
6 |
20กซ1000 |
45 |
3500*3150*3050 |
|
QC12Y-25*3200 |
25 |
3200 |
2กใ30กไ |
5 |
20กซ1000 |
45 |
4200*3150*3500 |
|
QC12Y-25*4000 |
25 |
4000 |
2กใ30กไ |
5 |
20กซ1000 |
45 |
4850*3300*3500 |
|
QC12Y-32*2500 |
32 |
2500 |
3กใ |
5 |
20กซ1000 |
55 |
3500*3150*3500 |
|
QC12Y-32*3200 |
32 |
3200 |
3กใ |
4 |
20กซ1000 |
55 |
4200*3150*3500 |
|
QC12Y-40*2500 |
40 |
2500 |
4กใ |
5 |
20กซ1000 |
75 |
3600*3300*3200 |
|
QC12Y-40*3200 |
40 |
3200 |
4กใ |
3 |
20กซ1000 |
90 |
4300*3300*3400 |
|
QC12Y-50*3000 |
50 |
3000 |
3กใ |
5 |
|
90*3 |
4040*3600*4800 |
|
QC12Y-50*6000 |
50 |
6000 |
3กใ |
5 |
|
90*5 |
7040*2800*5100 |
|
QC12Y-60*3500 |
60 |
3500 |
3กใ30กไ |
5 |
|
90*4 |
