CPT-190 Table Model Marine Magnetic Compass

CPT-190 Table Model Marine Magnetic Compass

CPT-190 Table Model Marine Magnetic Compass is a sort of table model liquid magnetic compass. It is used for the small and medium sized vessels acting as steering compass. The compass is a magnetic compass class A and it is designed and manufactured on the basis of the national standard GB/T 14108-93 ( General Technical Terms of Marine Magnetic Compass Class A ), and its technical performance index is completely in accordance with the national standard. The product has the advantages of beautiful outline, high precision, convenient correcting difference, steady performance and legible lighting etc. It is the essential navigation instrument for the middle and small vessels.

Specifications

Project	Data
Dial Diameter	Φ 190mm
Dial Graduation	0°-360°, 1° for each grid
Operation Temperature	-25°C~+60°C
Indicating Deviation(H=35µ T, T=20±3°C)	≦0.5°
Half Period (H=34µ T, T=20±3°C)	≧8.62S
Friction Deviation (H=34µ T, T=20±3°C)	≦0.09°
Main Semicircle Self Heterodyne Correcting Energy	1°~ 45°
Quadrant Self Heterodyne Correcting Energy	0.5°~10°
Inclining Heterodyne Correcting Energy	-75~ +75µT
Lighting Power	AC 220V, DC 24V
Outline Dimension	750×346×570mm
Diameter of Mounting Holes	pitchrow 275, aperture Φ12
Weight	27KG

Features

1. High Precision

2. Steady Performance

3. With Night Lighting

4. Built-in Compensator

5. Beautiful Outline

CPT-190 Table Model Marine Magnetic Compass

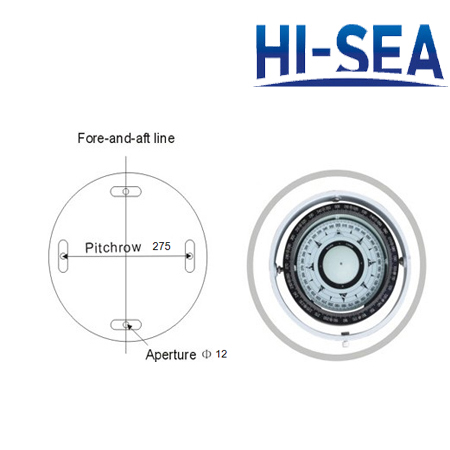

Base Installation Size
