Crane

Crane:

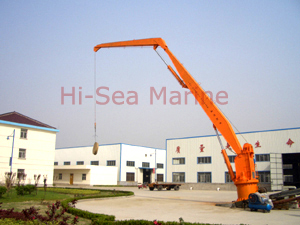

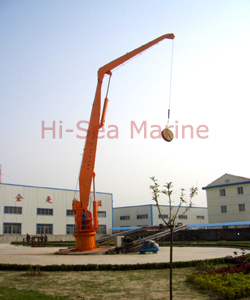

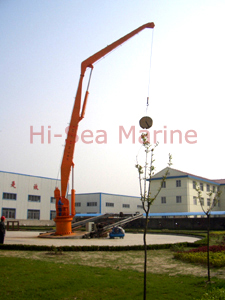

5T-18M Knuckle Boom Crane

Main Technical Specifications

1ӢWorking Load: 50kN

2Ӣ Hoisting Height: 25m

3Ӣ Hoisting Speed: 10m/min

4Ӣ Slewing Speed: 0.5r/min

5”¢ Slewing Angle: 360”ć

6Ӣ Working Radius: 1.8-8m

7ӢTime of Arm Change: 120s

8ӢElectric Motor

Power: 25KW

Power Source: 440V,60Hz

Protection type: IP44

Insulation: F

Cable gland: With

Space heater: Yes

Starting method: Soft start

Comply with IEC requirement: Yes

9ӢDesign Condition:

Heel £¼5”ć

Trim £¼2”ć

10ӢElectrical control box

Protection type: Ip23

Control Voltage: 220 V 50 Hz 1 phase

We can supply Marine cranes and Offshore cranes, and all these cranes will be certifiacted by CCS, ABS, NK, DNV, GL, BV, LR, etc, and API 2C.
