Distributed tuyere
[Search Related Products]Distributed Tuyere
Description
The products have achieved the perfect combination for Directional air and bulk flow wind.
In the winter, wind guide plate into the ceiling, the airflow under the vertical feed, the sphere
can rotate to any angle, to adjust the air flow direction, design a more humance; In the summer,
wind guide plate into the ceiling, sending wind along the ceiling to form attached flow,
the sphere csn rotate to any angle, to adjust the air flow direction, to people feel cooler.

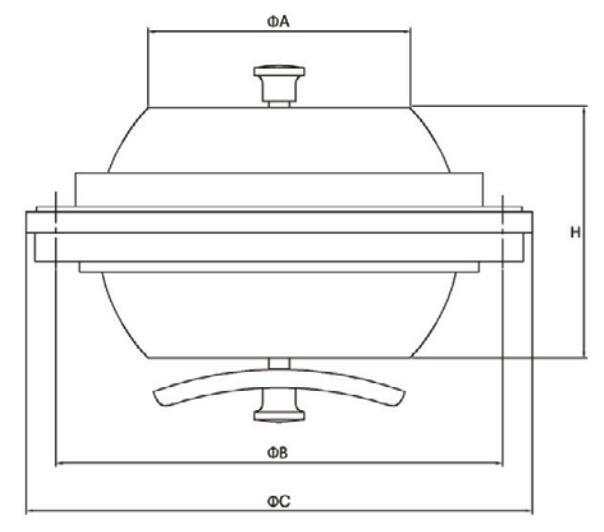

Drawing
Main Specification
Specification |
A |
B |
C |
H |
Ceiling open hole |
Flow-rate m3/h |
C |
63 |
143 |
165 |
82 |
129 |
0-60 |
D |
77 |
159 |
181 |
92 |
145 |
0-90 |
E |
90 |
172 |
194 |
96 |
158 |
0-220 |
F |
135 |
248 |
264 |
106 |
235 |
0-350 |
