Ring type adjustable jet air outlet

Ring type adjustable jet air outlet


Description

Suitable for occasions with far-reaching blows, the tuyere resistance is small, and the wind speed has a long range.The inner ring can be rotated up and down 45 degrees to adjust the wind direction.

Material:Aluminum plate

Surface treatment: electrostatic spray, baking finish or anodizing.

Neck size:ø150 ø200 ø250 ø300 ø350

If you need other specification, we can provide customized service for you.

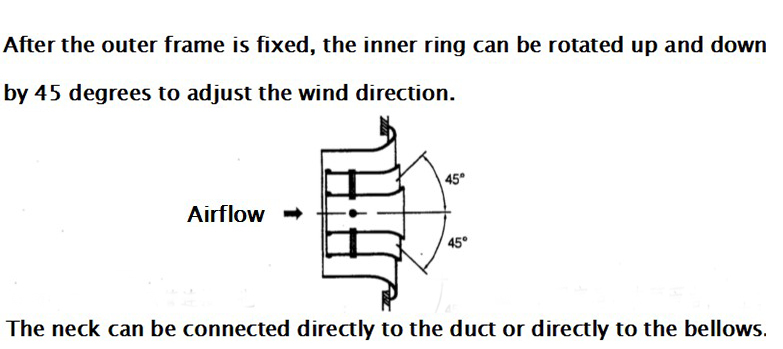

Drawing

Ring type adjustable jet air outlet

Ring type adjustable jet air outlet

Specification

C

A

B

H

ø150

Ø193

ø165

60

ø200

Ø243

Ø215

70

ø250

Ø293

Ø265

80

ø300

Ø343

Ø315

90

ø350

Ø393

Ø365

100

Technical parameters

Neck

Size

Wind speed(M/S)

2

3

4

5

6

7

8

10

Total pressure loss

0.7

1.5

1.7

2.5

3.2

4.8

6.6

8.6

ø150

Air volume

130

196

262

328

393

460

525

655

Arrival distance

2.6

4.0

5.5

6.8

8.2

9.6

11.0

15.2

NC

-

26

30

36

43

49

53

56

Ø200

Air volume

233

350

467

583

700

816

933

1166

Arrival distance

3.8

5.6

7.4

9.2

11.0

13.0

14.7

20.5

NC

-

26

30

36

43

49

53

56

Ø250

Air volume

365

548

730

916

1095

1280

1460

1825

Arrival distance

4.6

7.0

9.5

11.6

13.8

16.2

18.5

25.4

NC

-

24

28

33

38

42

46

50

Ø300

Air volume

526

790

1052

1315

1580

1842

2105

2632

Arrival distance

5.6

8.4

11.2

14.0

16.8

19.5

22.2

32.0

NC

-

24

29

33

38

42

46

50

Ø350

Air volume

705

1057

1410

1762

2115

2467

2820

3525

Arrival distance

6.5

9.6

13.0

16.3

19.5

22.6

25.6

32.5

NC

-

25

30

34

40

43

47

51
