Dredge Pump

Description of Dredge Pump

Our Dredge Pump¡¯s structure is suitable to dredgers or dredging ships.The pumps has a single-stage,single-suction and double pump shell structure,which meets the dredging requirements.Therefore,The Single-walled Dredge Pump and Double-walled Dredge Pump are available. WN series of Dredge Pump is one new type of dredging pump.The WN series are designed according to the dredging requirements of rivers,lakes and seas and the imminent situation of reclamation work.

The series of mud pump has many characteristics,such as the overall structure,good dredging performance,long service life,high efficiency,reliable shaft seal and the comprehensive economic use,which is remarkable characteristic.This type of dredge pump can completely meet the requirements of dredgers.They are approved by CCS.

200 WN - 500 WN type dredge pump integral by a single pump shell, single stage single suction cantilever horizontal structure, press and gear box of the connection way all can provide two kinds of typical structure, namely take bracket type and pump box and type. Own bracket type lubrication way as the grease lubrication or thin oil lubrication.
600 WN - 1000 WN type dredge pump overall adopts double pump shell, single stage single suction cantilever horizontal structure, bring their own bracket, lubrication way as the forced thin oil lubrication. Double pump shell the safety and reliability of the design makes sheath always can use to close to wear through, and when sheath rupture, pump room will not fill.

The main features of Dredge Pump are:

1.The overall structure Marine sex is good

A.Structure is simple,reliable

B.Easy to tear open outfit,easy maintenance

2.Dredging good performance

A.Cavitation performance is good

B.The flow ability,wide applicability

C.Performance curve steep drop

D.Can realize a variety of pump performance deployment

3.Wear-resisting performance is good,over-current components long life

4.Hydraulic loss is small,high efficiency,low power consumption

5.Shaft seal and reliable,and no leakage

6.Electric barring institutions,saves time and effort

Technical Parameters:

Type

Capacity (m³/h)

Head (m)

Speed (r/min)

Efficiency (£¥)

NPSHr (m)

Inlet Diameter(mm)

Outlet Diameter(mm)

Max.Diameter of Flowed Partice(mm)

Weight(kg)

200WND

600~800

20~40

700-900

60-65

<4.5

250

200

178

2500

200WN

750~1000

40~65

700-850

70-72

<4

250

200

180

3000

250WND

950~1100

20~40

500-700

65-70

<4

300

250

220

3000

250WN

1100~1300

40~65

500-650

70-74

<4

350

250

144

3513

300WND

1500~1800

20~40

400-600

65-68

<4

350

300

241

6000

300WN

1800~2200

40~65

400-550

74-78

<4

450

300

241

7000

350WN

2600~3000

40~65

400-550

74-78

<4.5

450

350

245

7300

400WN

2800~3200

20~40

400-550

74-78

<4.5

450

400

250

7500

450WN

3200~3850

40~67

350-500

76-80

<4.5

600

450

254

7850

500WNQ

3600~4200

20~40

220-320

72-75

<4.8

600

500

330

8000

500WN

4500~5500

40~65

350-450

78-80

<4.8

650

500

250

11300

600WN

7000

62

470

80

<6

700

600

220

30000

600WNQ

7000

30

380

83

<6

700

600

220

16000

700WN

10000

85

380

85

<6

760

700

280

45000

700WNQ

10000

28

280

85

<6

760

700

280

21000

800WN

12500

59

349

81

<6

800

750

300

40000

800WNQ

12500

32

258

81

<6

800

750

300

23000

800WND

12500

32

258

81

<6

800

750

300

23000

850WN

14400

70

330

85

<6

900

820

320

65000

900WN

16000

30

175

85

<6

1000

900

340

80000

1000WN

16000-25000

23~76

181-290

85-87

<6

1200

1000

350

121000

Note:20--Discharge Diameter(mm) WN--Model D--Low head Q--Submersible pump

The size can be customized according to customers'requirements

Dredge Pump

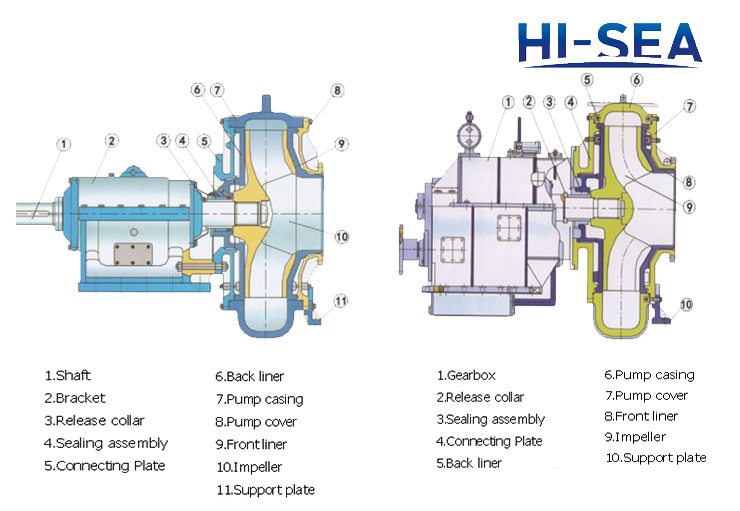

Construction Sketch of 200WN-500WN Dredge Pump

Dredge Pump

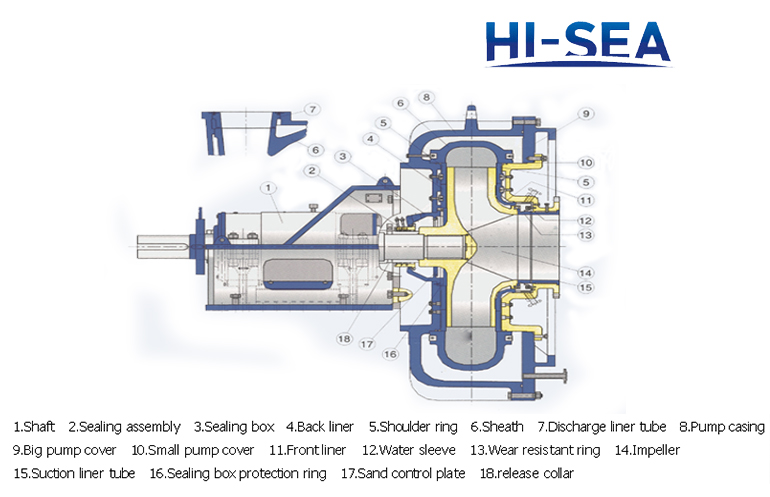

Construction Sketch of 600WN-1000WN Dredge Pump

Dredge Pump

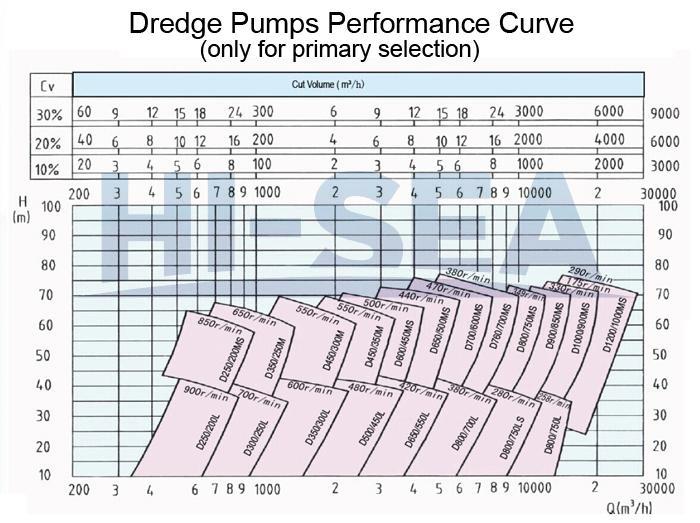

Dredge Pump Performance Curve
