Single-walled Dredge Pump

Description of Single-walled Dredge Pump

Our single-walled dredge pump is suitable to different types of dredgers.This single-walled dredge pump system is always highly efficient.Because of its excellent,stable suction pump performance,long wear life and minimum maintenance,the system is able to handle bigger volumes in less time and at a lower cost.The pumps are optimized by CFD (computer fluid dynamics) to get the highest pump efficiency at maximum sphere clearances over a wide range. The pumps are also designed to get an even wear with minimal wear rates.

The bearing blocks of the standard pumps are of a very strong rugged design, resulting in a long lifetime. Optionally, the pumps may be delivered with an integrated gearbox, a combination of a bearing block, pedestal and reduction gears.

The wet parts of our dredge pumps are made of extremely hard and wear-resistant materials. This improves both the life-time and maintenance intervals, which entails an ongoing high performance. The impellers of our dredge pumps are designed to maintain a high performance, even when it is used extensively.

Theory:Centrifugal pump

Usage:Slurry mud

Fuel:Diesel

Pressure:High pressure

Power:Hydraulic

Standard:Nonstandard

The main Features of Single-walled Dredge Pump are:

1. Long working life in abrasive conditions

2.Efficiency up to 92% (as measured in practice) resulting in lower fuel consumption at unchanged production

3.Reduced and more even wear, resulting in longer lifetime of wear parts

4.Better performance as a result of the low net positive

5.Suction head required (NPSHR)

6. Highly versatile application due to steep flow head ratio curve

7.Limited influence of wear on pump performance

8.Wear-susceptible parts are available in abrasion-resistant materials

9.Easy to disassemble for inspection and repair

Technical Specifications:

Capacity

(m³/hr)

Head
(m)

Impeller
Speed
(r/pm)

Efficiency
(%)

Inlet Diameter(mm)

Outlet
Diameter
(mm)

NPSHR

Max Flowed Particle
(mm)

Pump Weight

(T)

(m)

Five Pieces

Three Pieces

700--1100

20--45

500--750

65--70

300

250

4

132

220

4.5

900--1500

40--60

500--650

70--74

350

250

4.5

86

144

4.6

1500--2200

30--65

400--550

74--78

450

300

4

144

241

8

2000--3000

40--65

400--550

74--78

450

350

4

147

245

8.8

3000--4000

35--67

350--500

76--80

600

450

4.5

125

254

12

4000--5500

40--65

350--450

78--80

650

500

4.8

150

250

17

5000--9000

55--80

320--400

81--85

650

600

6

160

220

35

8000--12000

60--85

280--380

83--85

750

700

6

180

280

50

10000--15000

50--70

260--360

79--80

850

800

6

200

300

58

12000--19000

50--75

280--330

83--85

950

900

6

210

320

85

16000--25000

23--76

180--290

85--87

1100

1000

6

230

350

126

Note£ºThe specification can be customized according to your requests.Double-walled Dredge Pump and other Dredge Pumps can be available.For more information,please feel free to contact us directly.

Single-walled Dredge Pump

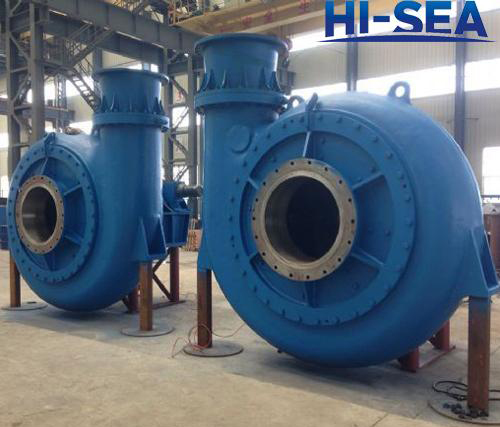

Picture of Single-walled Dredge Pump
