DRG Series Electric Heating Calorifier

1. Description of DRG Series Electric Heating Calorifier:

This series calorifier are suitable for heating water on the ship or platform,heating fresh water for crew.

This series calorifier can be combined with fresh water hydrophore on board , namely use fresh water to renew the stock of hot water tank, and then heated by electric for useage of entire vessel.

2. Main Technical Parameters:

Type	DRG-
Type	0.12	0.2	0.3	0.5	1.0
Capacity(m3)	0.12	0.2	0.3	0.5	1.0
Working Pressure (MPa)	0.4
Design Pressure (MPa)	0.44
Testing Pressure (MPa)	0.66
Safety Valve Open Pressure (MPa)	0.42
Water Inlet Temp. (°C)	15
Water Outlet Temp. (°C)	65
Hot-water capacity (kg/h)	180	360	540	720	900
Electric Heating Power (kw)	12	24	36	48	60
The laying of outer surface of insulation layer thickness (mm)	40
Outsourcing galvanized steel sheet thickness (mm)	0.7

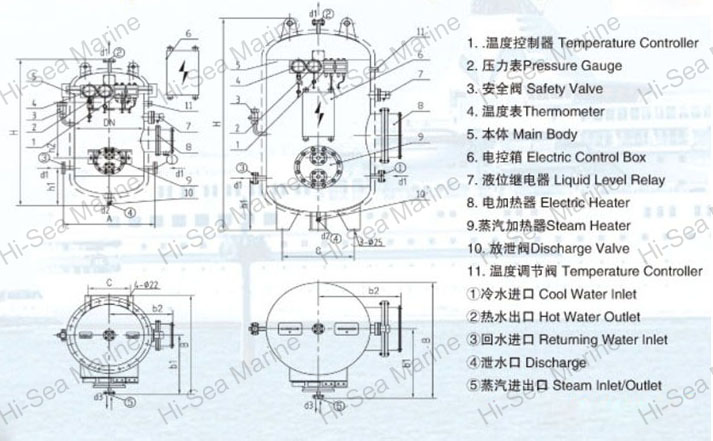

3. Abbreviated Drawing:

DRG Series Electric Heating Calorifier

4. All kinds of IMO certificate supply:

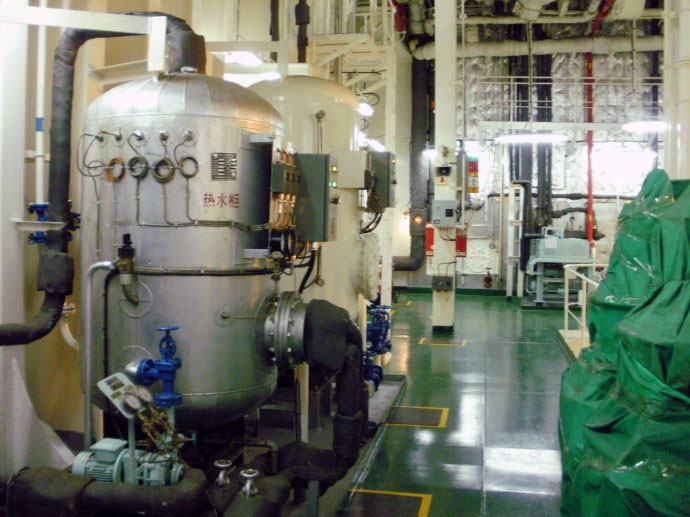

5. Application on vessel showing:

DRG Series Electric Heating Calorifier
