Four Ropes Clamshell Grab for Nickel Ore
[Search Related Products]

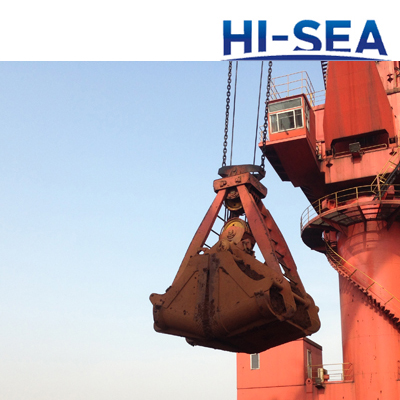

Four Ropes Clamshell Grab for Nickel Ore
Four ropes clamshell grab for nickel ore is a kind od newly grab, which is for loading and unloading nickel ore. This grab has robust scraper mechanism, it will clear out sticky nickel in unloading. Because the scraper just relatively move to grab scoop, it is not easy to be damaged. This kind of grab can also be used for other bulk cargo.
Product Details:
1. Rated capacity: 10-40 ton
2. Volume: 3-11m³
3. Working height: 10.8-18.5m
4. Dead weight: 4-15 ton
5. Designs to customer specification, including volume and unladen weight
6. Accept testing including certification such as BV,LRS, GL, DNV, etc.
Specification:
|
Rated Capacity |
Dead Weight |
Volume |
Working Height |
Max.Opening |
|
T |
T |
m³ |
m |
m |
|
10 |
4 |
3-4.7 |
10.8 |
3.34 |
|
16 |
6.5 |
5.98-9 |
13.1 |
3.9 |
|
25 |
9 |
7.6-10.3 |
15.5 |
4.68 |
|
40 |
15 |
11-10 |
18.5 |
5.6 |
Sketch of the four ropes clamshell grab for nickel ore
Four Ropes Clamshell Grab for Nickel Ore
