Horizontal Powder Ribbon Mixer
[Search Related Products]
Horizontal Powder Ribbon Mixer:
1.Power:5.5 -110kw.
2.Designed loading capacity:100-3000L.
3.Working capacity:180-18000L.
4.Effective rate:60% effective volume.
5.Voltage:3P,380V,50Hz.
6.Rotate speed:12-62 rpm.
7.Material:SS/CS.
8.Certification:CE,ISO,BV,SGS.
9.Application:Powder.
10.Specification of Horizontal Powder Ribbon Mixer:
|
working capacity(m³) |
0.18 |
0.3 |
0.6 |
1.2 |
1.8 |
2.4 |
3 |
3.6 |
4.8 |
6 |
9 |
12 |
18 |
|
working capacity(kg) |
200 |
300 |
600 |
1200 |
1800 |
2500 |
3000 |
3600 |
4800 |
6000 |
9000 |
12000 |
15000 |
|
speed (r/min) |
62 |
62 |
49 |
33 |
33 |
27 |
27 |
27 |
22 |
14 |
14 |
14 |
12 |
|
power(kw) |
5.5 |
7.5 |
11 |
15 |
18.5 |
22 |
30 |
37 |
45 |
55 |
75 |
90 |
110 |
|
Weight(kg) |
600 |
900 |
1200 |
2000 |
2500 |
3500 |
4000 |
4500 |
5000 |
6000 |
7500 |
10500 |
13000 |
|
Length(mm) |
2280 |
2670 |
3140 |
3860 |
4460 |
4950 |
5280 |
5530 |
5100 |
5610 |
5820 |
6300 |
7000 |
|
Width(mm) |
680 |
780 |
980 |
1200 |
1300 |
1400 |
1550 |
1560 |
1720 |
1750 |
2000 |
2350 |
2600 |
|
Height(mm) |
880 |
1240 |
1400 |
1650 |
1700 |
2000 |
2100 |
2200 |
2500 |
2650 |
2900 |
3160 |
3350 |

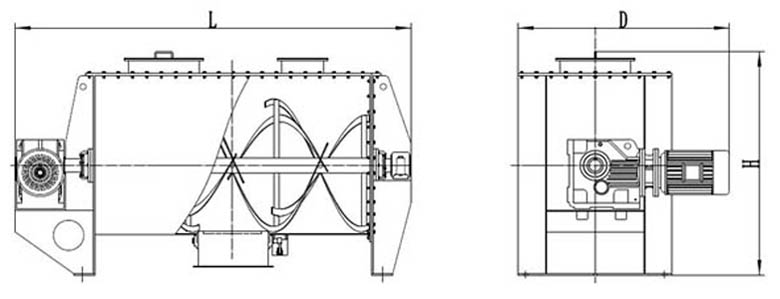

11.Drawing of Horizontal Powder Ribbon Mixer:
