W series Dynamic Mixer
[Search Related Products]
1.Power:1.51-11kw.
2.Total volume:0.18-4.0L.
3.Mixing time:6-10.
4.Voltage:220V/380V,50/60HZ.
5.Rotate speed:15 rpm.
6.Material:SS.
7.Certification:CE,ISO.
8.Application:Powder.
9.Specification of W series Dynamic Mixer:
|
Total volume(L) |
0.18 |
0.3 |
0.5 |
1.0 |
1.5 |
2.0 |
2.5 |
3.0 |
4.0 |
|
Production capacity(kg/h) |
40 |
60 |
100 |
200 |
300 |
400 |
500 |
600 |
800 |
|
Mixing time(min) |
4-8 |
6-10 |
6-10 |
6-10 |
6-10 |
6-10 |
6-10 |
6-10 |
6-10 |
|
Rotate speed(rpm) |
15 |
15 |
12 |
12 |
12 |
12 |
12 |
7.8 |
7.8 |
|
Motor power(kw) |
1.1 |
1.1 |
2.2 |
4 |
5.5 |
7.5 |
7.5 |
7.5 |
11 |
|
Overall dimension (L*W*H)(mm) |
1400 |
1685 |
1910 |
2765 |
2960 |
3160 |
3386 |
4450 กม2200 กม3600 |
4750 |
|
Total height(mm) |
1850 |
1850 |
1950 |
2460 |
2540 |
3590 |
3650 |
3700 |
3730 |
|
Weight(kg) |
280 |
310 |
550 |
810 |
980 |
1500 |
2150 |
2500 |
3200 |

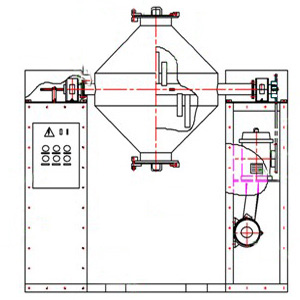

10.Drawing of W series Dynamic Mixer:
