Marine Gooseneck Ventilation

Installation Precautions:

- The joint of the gooseneck ventilator must be tight;Flange gaskets should be made of non-dusting and non-aging elastic materials, and no coating on the surface of the mat is strictly prohibited; Flange gaskets should be reduced as far as possible, using stairs or grooves.

- The crossing of the wall of the gooseneck ventilator and the ceiling of the clean room and the partition wall should be tight, and the sealing filler or sealant can be set, and no leakage can occur.

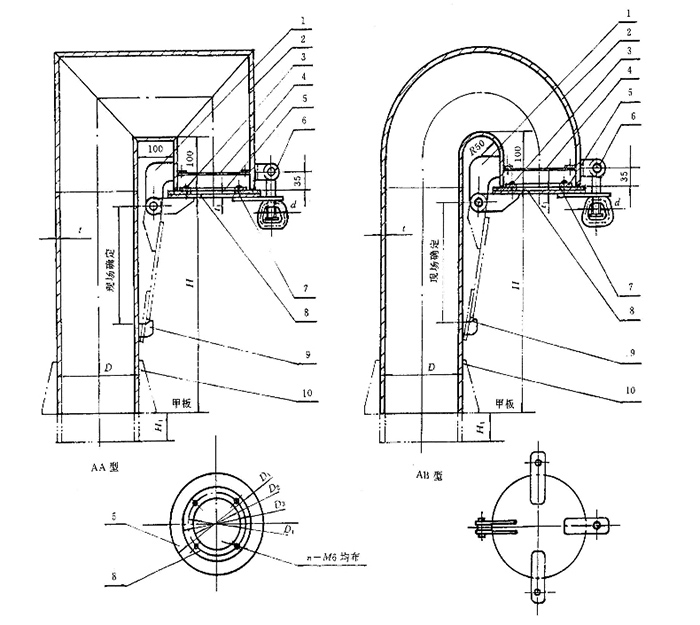

Drawing:

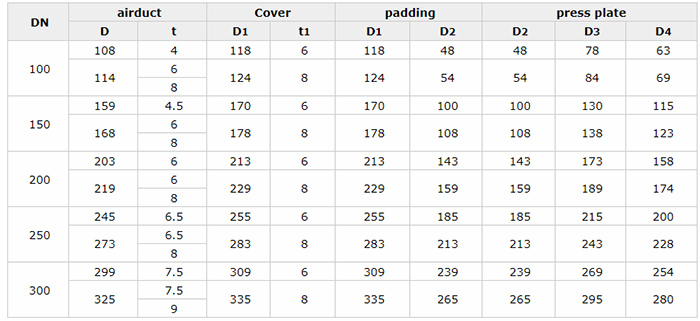

Specification:
