Type B Marine Mushroom Vent Head
[Search Related Products]
Material:
- airduct: Q235-A
- flame screen: 1Cr18Ni9
- screw: H62
- handwheel: Q235-A
- pointer: Q235-A
Outline Drawing:
Specification:
Note: The weight of ventilator doesn't include the weight of type-1.
Please fix supporting board when the distance between ventilator of height and the deck is more than 900mm.

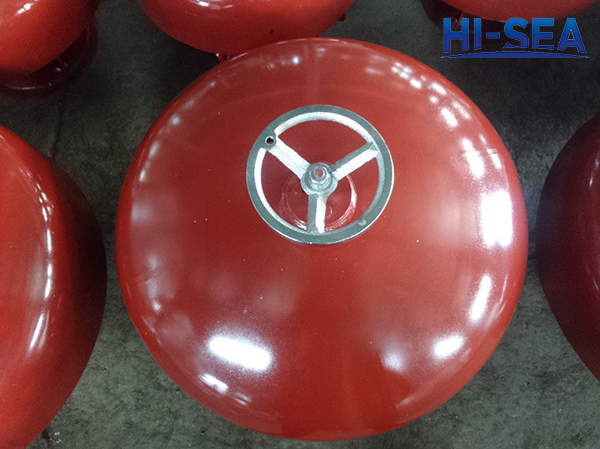

Picture of Type B Marine Mushroom Vent Head:
