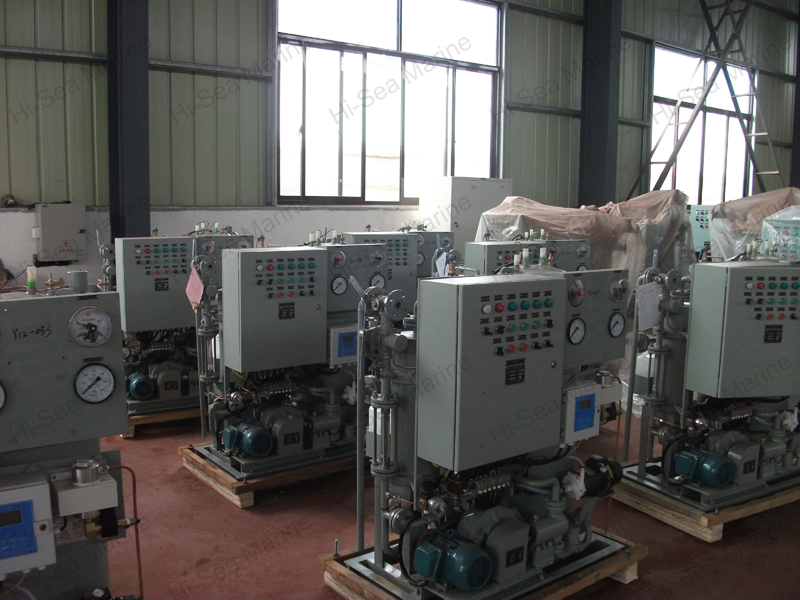

Marine Oil Water Separator

Model

YWC-

Technical Specifications

0.25

0.5

1

1.5

2

2.5

3

4

5

Rated capacity(m3/h)

0.25

0.5

1

1.5

2

2.5

3

4

5

Oil content of the discharged water

≯15ppm

Power of the electric heater（kw）

1kw

3kw

6

6

6

6

6

12

12

Electrical System

AC 380V/50Hz/3φ,AC 415V/50Hz/3φ,AC 440/60Hz/3φ,AC 480V/60HZ/3φ (optional)

Power of the electric motor

0.37kw

0.55kw

0.75kw

1.1kw

1.1kw

1.5kw

1.5kw

2.2kw

2.2kw

Suction head

≯6m-H2O

Pressure of the discharged water

5-10m-H2O

Outline Dimension（L*W*H）(mm)

1000*600

*1250

1100*690

*1460

1050*1000

*1620

1100*1130

*1650

1900*1120

*1700

1900*1120

*1900

1700*1500

*1900

2280*1700

*1900

2590*2000

*1900

Base

5#

6#

6#

6#

8#

8#

8#

10#

10#

Weight

Dry Weight

400

600

800

1060

1260

1500

1800

2100

2500

Wet Weight

550

900

1200

1650

2260

2800

3200

3900

4600

Applicable Vessel (KDWT)

<1

1-5

5-10

10-30

30-50

50-100

100-200

100-300

>300
