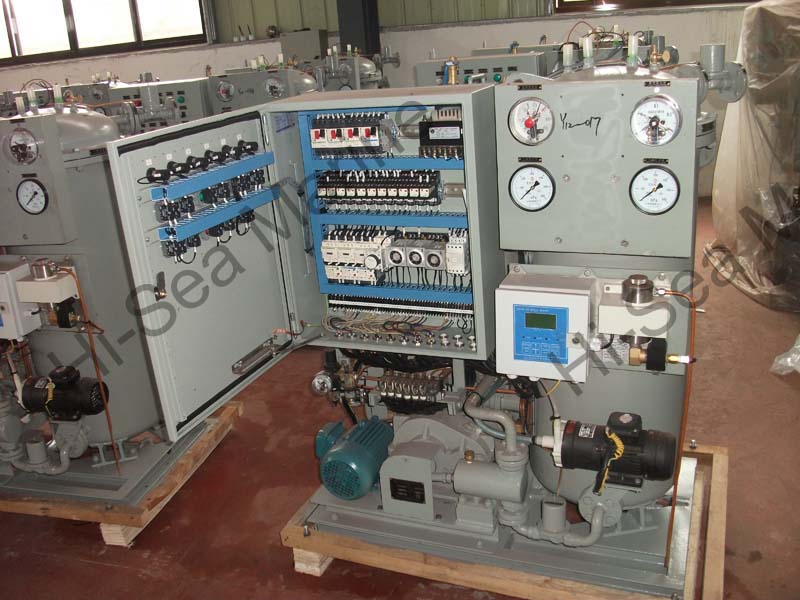

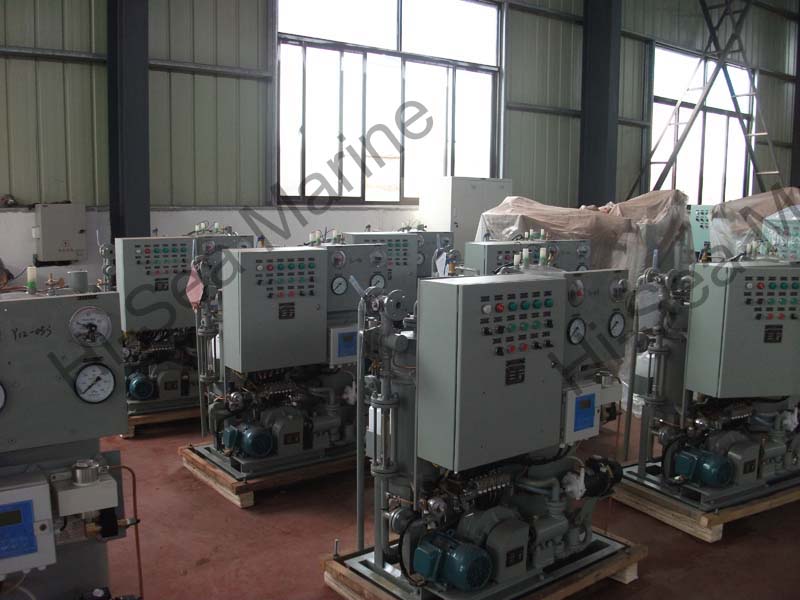

YWC-0.25 Bilge Water Clarifier

YWC-0.25 Bilge Water Clarifier

The YWC-0.25 type Device is used to separate oily water in bilge to make the discharge water meet the requirements of IMO MEPC.107 (49) Resolution.

YWC-0.25 type device is mainly constituted by the 1st stage coalescer, the 2nd stage filter, the 3rd stage membrane, electric control box, oil content meter, MONO pump, pneumatic valve, pressure controller, temperature controller and so on.

The combination offers of Bilge Separator include level controller and bottom valve.

Main Technical Parameter

⑴ Model: YWC-0.25 type

⑵ Treatment capacity

⑶ Oil content after treatment

⑷ Type: Vacuum type

⑸ Discharge water pressure:0.15MPa

⑹ The pressure of back flush water ( provided by shipboard) and cleaning water ＜0.3Mpa

⑺ The pressure of compressed air 9 (provided by shipboard): 0.6-1.0Mpa

⑻ Heating type: Electrical heating

⑼ The function of electric control box ：

The electric control box is installed on the main body of the device. Main function:

a) The control box can control the start and stop of pump manually and automatically;

b) The control box has power supply indicator, operation indicator and fault alarming indicator

c) The control box has Synthesis Fault Alarming Remote Transmission.

d) The control box functions together with bilge level controller.

Main function

The device adopts electrical heating; the 1^st stage cone wave plate gravity and coalesce separation; the 1^st and the 2^nd stage fiber filter and the 3^rd stage membrane permeation in order to make the treated bilge water meet the requirements of discharge standard of the resolution of IMP MEPC.107 (49).

Physical Characteristics

Outline dimension: L×W×H≈1000×600×1245mm

The operation surface ≥600mm

Weight: About 400kg

Equipment list

No.	Name	Model	Amount	Remarks
1	1st stage coalescer	322DF-3-01	1set	Material of main body
2	2nd stage filter	322DF-3-02	1set	Material of main body Fiber filter cartridge
3	3rd stage filter	322DF-3-03	1set	Membrane permeation
4	Electric control box	322DF-3-00SY	1set	Main electric components are Schneider products
5	Oil content meter	WKODM-II	1set
6	plunger pump		1set
7	Pneumatic valve	DN20	3psc
8	Pneumatic three-way valve	DN20	2pcs
9	Air/ electric change over solenoid valve		7pcs
10	Spring flow meter		1pcs
11	Dosing pump	14CQ-15	1set	Marine motor
12	Safety valve	A28H2-16T	1pcs
13	Differential pressure gauge	YX-60	2pcs
14	Thermometer	WSSX-401	1pcs
15	Pressure gauge	YCS-100	1pcs
16	Piping accessory of device		1set
