Marine Weichai Diesel Generator Set

Marine Weichai Diesel Generator Set

Features:

1. Engine brand: Weichai

2. Alternator brand: Marathon (Stamford, Sunvim, Siemens for option)

3. Application: used to provide electric power and propulsion force for ships

4. Electric starting or air starting

5. Rated speed: 1500RPM

6. Power range: 24KW～300KW

7. Frequency/Voltage: 50Hz/400V

8. Certificates approved: CCS, ABS, BV, DNV, LRS, etc.

Advantages:

1. High efficient system

2. Low fuel consumption

3. Strong driving force

4. Compact structure

5. Long service life

6. Reliability and stability

7. Simple maintenance

Weichai Diesel Genset Technical Data
Genset Model	Prime power	Rated Voltage	Output frequency	Rated speed	Engine model	Alternator model
Genset Model	Prime power	Rated Voltage	Output frequency	Rated speed	Engine model	Marathon	Stamford
CCFJ24JW	24KW	400V	50Hz	1500RPM	D226B-3CD	MP-H-24-4	PM144H
CCFJ30JW	30 KW	400V	50Hz	1500RPM	TD226B-3CD	MP-H-30-4	PM144K
CCFJ50JW	50 KW	400V	50Hz	1500RPM	WP4CD66E200	MP-H-50-4	UCM224F
CCFJ75JW	75 KW	400V	50Hz	1500RPM	WP4CD100E200	MP-H-64-4	UCM274D
CCFJ100JW	100 KW	400V	50Hz	1500RPM	WP6CD132E200	MP-H-75-4	UCM274E
CCFJ120JW	120 KW	400V	50Hz	1500RPM	WP6CD152E200	MP-H-90-4	UCM274G
CCFJ150JW	150 KW	400V	50Hz	1500RPM	WP10CD200E200	MP-H-100-4	UCM274J
CCFJ180JW	180 KW	400V	50Hz	1500RPM	WP10CD238E200	MP-H-180-4	UCM274K
CCFJ200JW	200 KW	400V	50Hz	1500RPM	WP10CD264E200	MP-H-200-4	HCM434D
CCFJ250JW	250 KW	400V	50Hz	1500RPM	WP12CD317E200	MP-H-250-4	HCM434E
CCFJ300JW	300 KW	400V	50Hz	1500RPM	WP13CD385E200	MP-H-300-4	HCM534C

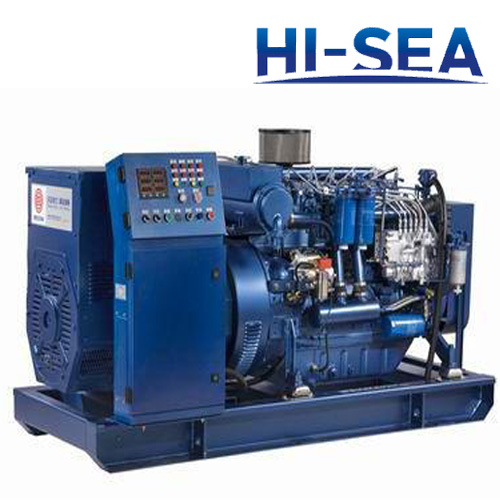

Product picture:

Marine Weichai Diesel Engine Generator Set
