Marine Zichai Genset
[Search Related Products]
Marine Zichai Genset
Features:
1. Engine brand: Zibo engine
2. Alternator brand: Marathon alternator
3. Application: used to provide electric power and propulsive force for vessels
4. Electric starting or air starting
5. Certificates approved: CCS, ABS, DNV, BV, RS, EIAPP, etc.
Advantages:
1. Stability and reliability
2. High combustion efficiency
3. Simple maintenance and low cost
4. Long service life
5. Strong driving force
Zichai Genest Technical Data |
||||||||
Model |
Prime power |
Standby power |
Rated speed |
Output frequency |
Rated voltage |
Phase |
Engine model |
Alternator Model |
CCFJ200JZ |
200KW |
220KW |
1500RPM |
50Hz |
400V |
3 |
Z6150ZLD-5 |
MP-H-200-4 |
CCFJ250JZ |
250 KW |
275KW |
1500RPM |
50Hz |
400V |
3 |
Z6150ZLD-13 |
MP-H-250-4 |
CCFJ300JZ |
300 KW |
330KW |
1500RPM |
50Hz |
400V |
3 |
Z6150ZLD-15 |
MP-H-300-4 |
CCFJ200JZ |
200 KW |
220KW |
1500RPM |
50Hz |
400V |
3 |
Z6170ZLD-2 |
MP-H-200-4 |
CCFJ250JZ |
250 KW |
275KW |
1500RPM |
50Hz |
400V |
3 |
Z6170ZLD-1 |
MP-H-250-4 |
CCFJ300JZ |
300 KW |
330KW |
1500RPM |
50Hz |
400V |
3 |
Z6170ZLD-3 |
MP-H-250-4 |
CCFJ350JZ |
350 KW |
385KW |
1500RPM |
50Hz |
400V |
3 |
Z8170ZLD-2 |
MP-H-350-4 |
CCFJ400JZ |
400 KW |
440KW |
1500RPM |
50Hz |
400V |
3 |
Z8170ZLD-3 |
MP-H-400-4 |
CCFJ480JZ |
480 KW |
528KW |
1500RPM |
50Hz |
400V |
3 |
Z8170ZLD-6 |
MP-H-480-4 |
CCFJ500JZ |
500 KW |
550KW |
1500RPM |
50Hz |
400V |
3 |
Z8170ZLD-6 |
MP-H-500-4 |
Product displaying:

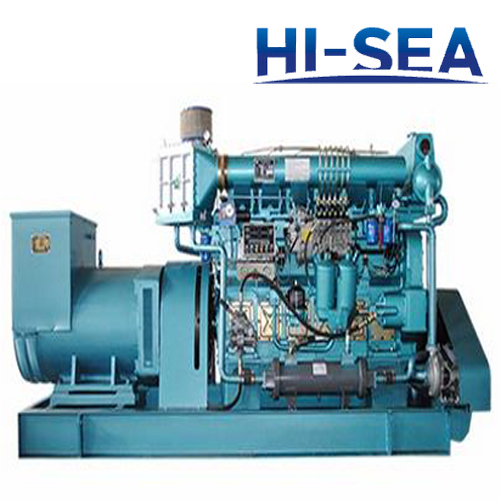

Marine Zichai Generator Set

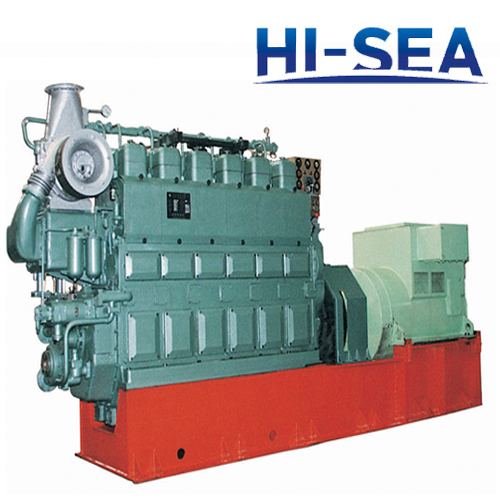

Marine Zichai Diesel Generating Set
