OCIMF Type Towing Bracket
[Search Related Products]
OCIMF Type Towing Bracket
OCIMF type towing bracket is a deck equipment and one part of emergency towing system and single point mooring. Towing and mooring bracket is welded to the deck and is rated to withstand the breaking load of the chain being used. The large sliding pin receives the towing chain and fix it quickly and securely into place. OCIMF type bracket can be supplied in accordance with classification societies including LR¡¯s, ABS, BV, DNV,CCS etc. Welding slot is available on request. For more detailed information, please feel free to contact us.
Features of OCIMF Type Smit Bracket
1. Model Type: OCIMF Smit Bracket
2. Application: For Emergency Towing System and Single Point Mooring
3. Applicable Chain Diameter: 54mm and 76mm;
4. Mounted on Deck
5. Material: Steel
6. High Quality, Durable
7. Get Approved by ABS, BV, DNV, LR¡¯s, NKK.
8. Can be Customized

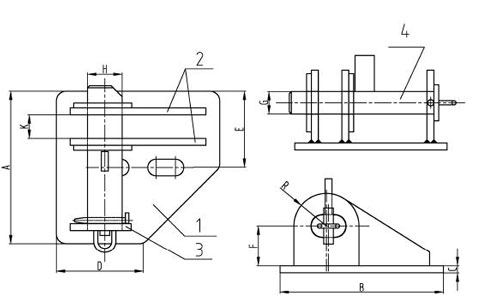

OCIMF Type Smit Bracket
Nominal Dia.(mm) |
Dimensions(mm) |
Mass(kgs) |
SWL(kN) |
MBL(kN) |
|||||||||
A |
B |
C |
D |
E |
F |
G |
H |
K |
R |
||||
54 |
500 |
555 |
20 |
300 |
259 |
140 |
78 |
118 |
80 |
110 |
118 |
1000 |
2000 |
64 |
600 |
625 |
28 |
360 |
300 |
175 |
88 |
122 |
100 |
135 |
184 |
1500 |
3000 |
76 |
720 |
800 |
30 |
430 |
360 |
200 |
112 |
170 |
110 |
160 |
312 |
2000 |
4000 |
102 |
940 |
1000 |
40 |
560 |
470 |
260 |
144 |
216 |
140 |
210 |
886 |
3200 |
6400 |
114 |
1100 |
1180 |
50 |
628 |
548 |
290 |
162 |
250 |
170 |
235 |
1184 |
3800 |
7600 |
