Plug Type Anchor Releaser JIS F2025-1992

Plug Type Anchor Releaser JIS F2025-1992

Plug type anchor releaser is applicable to anchor chain diameter 52mm to 120mm and commonly used on large and medium ships. Plug type anchor releaser is designed according to Japanese Standard JIS F2025-1976. It is installed on the anchor chains storage bulkhead and convenient and easy to operate when ship is in emergent circumstance. Plug type anchor releaser is applicable to Grade 2 anchor chains. For more detail information, please feel free to contact us.

Features of JIS F2025 Cable Clenches

1. Type: Plug Type Cable Clenches Anchor Releaser

2. Standard: JIS F2025-1992;

3. Material: Steel;

4. Used for Securing the Anchor Chains in the Chain Locker;

5. Applicable Chain Diameter: 52mm to 120mm;

6. Bolts No. Determined by Anchor Chain Diameter

7. Supply CCS, ABS, BV, LR, DNV Certificate etc.

8. Can be Customized

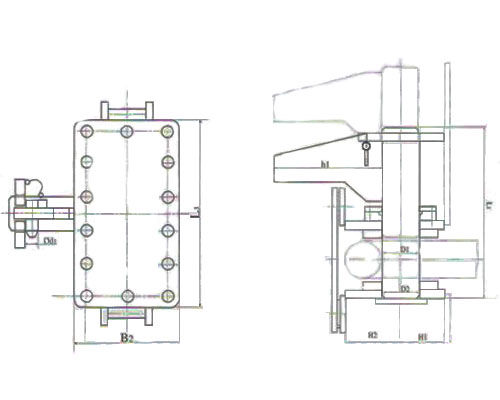

Plug Type Anchor Releaser JIS F2025-1992

Plug Type Anchor Releaser JIS F2025-1992

Type

Applicable Anchor Chain Dia.(mm)

L1

L3

B2

H1

H2

D1

D2

h1

d1

Weight(kg)

52

50~52

384

460

238

63

82

54

57

190

16

40.5

56

54~56

420

486

246

69

88

58

61

194

16

48.0

60

58~60

448

504

254

74

94

62

65

198

16

53.9

64

62~64

478

524

264

80

100

66

69

202

16

60.0

68

66~68

504

542

272

84

107

70

73

207

16

70.8

73

70~73

540

570

282

87

114

75

78

212

19

81.4

78

76~78

576

594

292

95

122

80

83

217

19

92.8

84

81~84

624

628

302

102

131

85

88

223

19

106

90

87~90

670

660

316

110

140

90

93

230

19

128

95

92~95

708

686

330

118

148

95

98

235

22

146

102

98~102

762

724

346

128

158

100

103

242

22

188

111

105~111

828

770

364

139

171

110

110

251

22

231

120

114~120

892

810

386

150

184

120

123

260

22

274
