SL type Static Mixer
[Search Related Products]
SL Type Static Mixer:
1.DN:25¡«600mm.
2.Material:SS304/SS316.
3.Highest degree of dispersion:1¡«2¦Ìm.
4.Uneven mixing coefficient:¡Ü1¡«3%.
5.Applicable fluid viscosity :¡Ü106cps.
6.Applicatio:High viscosity with high requirements of mixing and dispersion.
7.Dimension table:
|
DN/mm
|
dh/mm
|
L/mm
|
Q/(m3/h)
|
|
25
|
12.5
|
500
|
0.7-1.4
|
|
32
|
16
|
500
|
1.4-2.9
|
|
40
|
20
|
500
|
2.3-4.6
|
|
50
|
25
|
500
|
3.5-7
|
|
80
|
40
|
1000
|
9-18
|
|
100
|
50
|
1000
|
14-28
|
|
150
|
75
|
1000
|
32-64
|
|
200
|
100
|
1000
|
56-110
|
|
250
|
125
|
1000
|
88-176
|
|
300
|
150
|
1000
|
127-255
|
|
3850
|
175
|
1000
|
173-346
|
|
400
|
200
|
1000
|
226-452
|
|
500
|
250
|
1000
|
353-706
|
|
600
|
300
|
1000
|
410-814
|

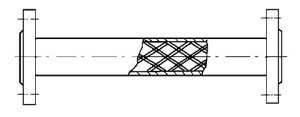

8.Drawing of SL Type Static Mixer:
