SX Type Static Mixer
[Search Related Products]
SX Type Static Mixer:
1.DN:50¡«500mm.
2.Material:SS304/SS316.
3.Highest degree of dispersion:1¡«2¦Ìm.
4.Uneven mixing coefficient:¡Ü5%.
5.Applicable fluid viscosity:¡Ü105 cps.
6.Application:mixing,emulsification,heat transfer and other process of middle and high viscosity.
7.Dimension table:
|
DN/mm
|
dh/mm
|
L/mm
|
Q/(m3/h)
|
|
50
|
12.5
|
500
|
3.5-7.0
|
|
65
|
16.25
|
1000
|
6-12
|
|
80
|
20
|
1000
|
9-18
|
|
100
|
25
|
1000
|
14-28
|
|
125
|
31.25
|
1000
|
22-44
|
|
150
|
37.5
|
1000
|
30-60
|
|
200
|
50
|
1000
|
56-110
|
|
250
|
62.5
|
1000
|
88-176
|
|
300
|
75
|
1000
|
125-250
|
|
350
|
87.5
|
1000
|
173-346
|
|
400
|
100
|
1000
|
226-452
|
|
500
|
125
|
1000
|
353-706
|

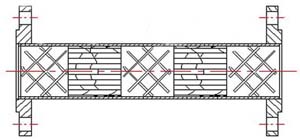

8.Drawing of SX Type Static Mixer:
